Schneider Electric

SXWSATXXXSLX

SXWSATXXXSLX Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for SXWSATXXXSLX Schneider Electric

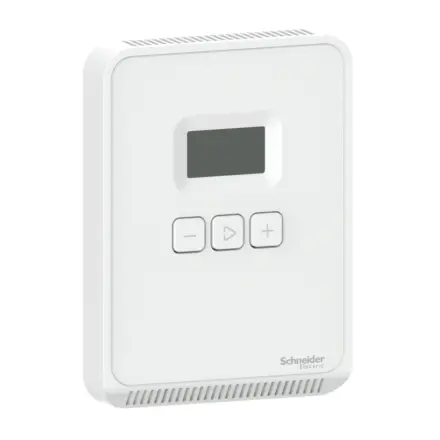

SXWSATXXXSLX Schneider Electric - Temperature Sensor for SmartX IP Controllers LCD Display Setpoint Override - Cover included

Extended Description for SXWSATXXXSLX Schneider Electric

SXWSATXXXSLX Schneider Electric - SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface.,These sensors use an RJ-45 Sensor Bus which provides communication and power from the SmartX IP controller.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£85.61 Exc. VAT
£102.74 Inc. VAT

Main

product or component type Sensor
Type of measurement Temperature
device application HVAC,Temperature control,Fan speed controller
Display size 30 x 17 mm
Flame retardance UL94-V0
IP degree of protection IP20
Location Living space
Depth 24 mm
Height 115 mm
Width 85 mm
Output type SmartX Sensor Bus
Standards UL 916,FCC part 15 class B
Colour White
Ambient air temperature for operation 0…50 °C
Relative humidity 0…95 %
Sensor type Transmitter
Surface finish Matt
Product name SmartX Living Space Sensor
Function available Override switches,Setpoint adjustment
Product specific application Cooling,Heating
Range SpaceLogic

Complementary

Device presentation Complete product
Max power consumption in W 2 W
Information displayed Temperature,Operating mode,Heating/cooling symbol
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Control type + button,- button,Present/absent symbol button
Local signalling 1 red, green and blue LED modulating , function: heating or air-conditioning application
Material ABS (acrylonitrile butadiene-styrene)
[Us] rated supply voltage 24 V DC
Display type LCD display
Communication port support RJ45

Environment

Temperature setting range 0…50 °C
Measurement range 0...50 °C temperature
Product certifications CE conforming to EN 61000-6-3,RCM,EAC,ICES-003

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.1 cm
Package 1 Width 9.7 cm
Package 1 Length 14.3 cm
Package 1 Weight 181.5 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

Environmental disclosure
