Schneider Electric

SXWSC3XSELXW

SXWSC3XSELXW Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for SXWSC3XSELXW Schneider Electric

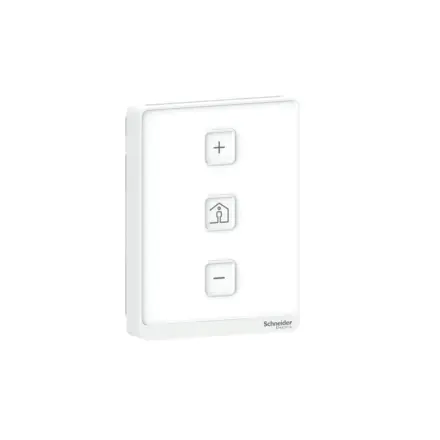

SXWSC3XSELXW Schneider Electric - SmartX Cover Plate, for Sensor Base, 3 Buttons, No Display, Setpoint, Override, Optimum White Cover

Extended Description for SXWSC3XSELXW Schneider Electric

SXWSC3XSELXW Schneider Electric - SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface.,These sensors use an RJ-45 sensor bus that provides communication and power from the SmartX IP controller.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£74.40 Exc. VAT
£89.28 Inc. VAT

Main

Range SpaceLogic
product or component type Cover
Product name SmartX Living Space Sensor
device application HVAC,Control
Product certifications CE conforming to EN 61000-6-3,RCM,EAC,ICES-003
Display type Without display
Flame retardance UL94-V0
IP degree of protection IP20
Location Living space
Depth 20 mm
Height 115 mm
Width 85 mm
Ambient air temperature for operation 0…50 °C
Standards UL 916,FCC part 15 class B
Colour White
[Us] rated supply voltage 24 V DC
Device presentation Cover plate
Surface finish Matt
Local signalling 1 red, green and blue LED modulating , function: heating or air-conditioning application

Complementary

Material ABS (acrylonitrile butadiene-styrene) GF10 FR
Function available Override switches,Setpoint adjustment
Supply Base
Connections - terminals Bus terminal (back)
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers,EcoStruxure Building Operation SmartX Living Space Sensor base unit

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.2 cm
Package 1 Width 9.8 cm
Package 1 Length 5 cm
Package 1 Weight 120 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue
