Schneider Electric

TM171OBM14R

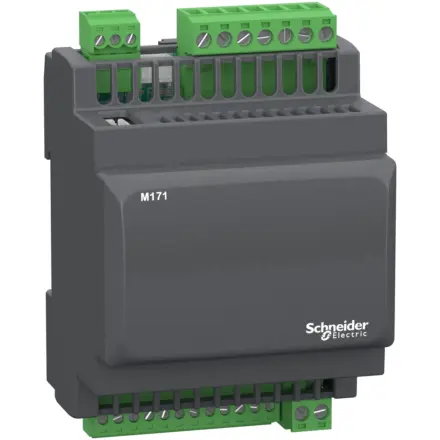

TM171OBM14R Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for TM171OBM14R Schneider Electric

TM171OBM14R Schneider Electric - Modicon M171 Optimized Blind 14 I/Os Modbus 100-240Vac

Extended Description for TM171OBM14R Schneider Electric

TM171OBM14R Schneider Electric - This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications.,This controller figures 2 digital inputs, 5 configurable analog inputs, 4 digital outputs, and 5 analog outputs.,This programmable controller embeds 2 communication ports for RS485 and LAN expansion bus.,It is a programmable logic controller for HVAC and Pumping applications.,DIs are open collectors, AIs are NTC, PT1000, 0-20mA, 4-20mA, 0-10V, 0-5V, 0-1V.,DOs are SPST or SPDT (2A, 230Vac) with the same common, AOs are open collectors for 12V PWM/PPM, or 0-10V, 4-20mA.,It measures 70.2mm wide, 61.6mm deep, 87mm high, and weighs 0.190kg.,This controller is designed for HVAC solutions.,It is certified by CE, CURus, CSA and EAC.,It is compatible with screw terminal blocks, remote display, and communication modules.,It is sold in a 1-piece package.,It is designed for 35mm rail mounting.,Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines.,Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£131.45 Exc. VAT
£157.74 Inc. VAT

Main

range of product Modicon M171/M172
product or component type Controller
Product specific application HVAC and pumping solution
Variant Programmable
Total inputs/outputs 14
Discrete input number 2
Discrete output number 1 for relay outputs SPDT with independent common,3 for relay outputs SPST with same common
Discrete output current 2 A for relay
Analogue input number 2 configurable,3 analog input NTC
Analogue output number 2 voltage, range: 0...10 V,2 PWM/PPM, range: 20 kHz, 12 V, 35 mA,1 current, range: 0...20 mA/4...20 mA

Complementary

Number of port 1 LAN expansion bus,1 RS485 - screw terminal block (Modbus serial link)
Input/output number 5 analog output(s),4 digital output(s),5 analog input(s)
Discrete input logic Sink or source (positive/negative)
Contacts usage Volt-free contacts
Analogue input type NTC temperature probe - 50...100 °C - resolution: 0.1 °C,Pt 1000 temperature probe - 50...400 °C - resolution: 0.1 °C, current 0...20 mA/4...20 mA, voltage 0...1 V, voltage 0...10 V (ratiometric), voltage 0...5 V
Sensor power supply 12 V DC at 85 mA
[Us] rated supply voltage 100...240 V
Width 70.2 mm
Height 87 mm
Depth 61.6 mm
net weight 0.19 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13.200 cm
Package 1 Width 9.000 cm
Package 1 Length 18.500 cm
Package 1 Weight 280.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 6
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.940 kg

Logistical informations

Country of origin IT

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
