Description for TM172E12R Schneider Electric

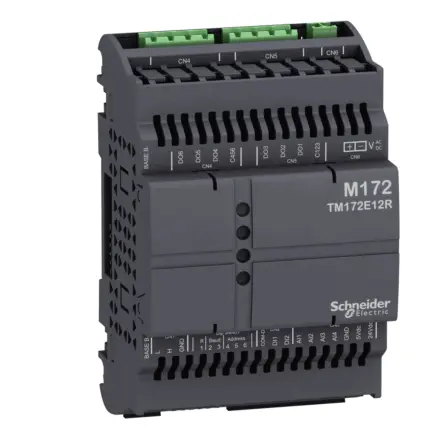

TM172E12R Schneider Electric - Modicon M172 Optimized and Performance expansion 12 I/Os

Extended Description for TM172E12R Schneider Electric

TM172E12R Schneider Electric - This I/O expansion module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications.,This additional I/O module offers 2 digital inputs, 4 analog inputs, and 6 digital outputs.,It is connected via the CAN expansion bus of the M172 and M173 logic controllers.,It increases the number of I/O up to 78 on M173 logic controllers, and up to 238 on M172 logic controllers.,DIs are high-speed counters. The AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm, and DIs.,DOs are SPST 3A with the same common.,It measures 72mm wide, 59mm deep, 110mm high, and weighs 0.140kg.,It allows the expansion of the number of IOs on the HVAC controllers.,It is certified by CE, RCM, EAC, CSA and CURus.,It is compatible with M173 Optimized and M172 logic controllers.,It is sold in a 1-piece package.,It mounts on 35mm DIN rail.,Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines.,Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£122.63 Exc. VAT
£147.16 Inc. VAT

Main

range of product Modicon M171/M172
product or component type Additional I/O module
Product specific application HVAC control
Total inputs/outputs 12
Discrete input number 2
Discrete output number 3 for relay outputs SPST with same common
Discrete output current 3 A for relay SPST
Analogue input number 4 configurable by pair

Complementary

Number of port 1 CAN port - screw terminal block
Input/output number 6 digital output(s),4 analog input(s),2 digital input(s)
Discrete input logic Positive logic (sink) up to 2 kHz
Discrete input voltage 24 V AC/DC
Discrete input current 2.5 mA AC/DC
input impedance 20 kOhm
Analogue input type NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C),NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C), current 0...20 mA - resolution: 1 digit at < 150 Ohm, current 4...20 mA - resolution: 1 digit at < 150 Ohm, voltage 0...10 V - resolution: 1 digit at > 10 kOhm, voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric), impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm, impedance 0...300 daOhm - resolution: 1 daOhm at 2 kOhm,Pt 100/Pt 1000 PTC - 55...150 °C - resolution: 0.1 °C at 2 kOhm, direct input - resolution: 1 digit (Dry contact), Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 2 kOhm
Measurement accuracy NTC NK103 - 40...+110 °C +/- 1 °C, NTC NK103 110...137 °C +/- 1.9 °C, NTC 103AT-2 - 50…110 °C +/- 1 °C, PTC - 55...+135 °C +/- 1.1 °C, PTC - 150…135 °C +/- 3.1 °C, Pt 1000 - 200...-100 °C +/- 5 °C, Pt 1000 - 100...-50 °C +/- 3 °C, Pt 1000 - 50...+200 °C +/- 1.5 °C, Pt 1000 200...600 °C +/- 15 °C, Pt 1000 600...850 °C +/- 30 °C,0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit,0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit,4...20 mA +/- 1 % of full scale +/- 1 digit,0...10 V +/- 1 % of full scale +/- 1 digit,0...5 V +/- 1 % of full scale +/- 1 digit,HOhm 0...700 hOhm +/- 10 hOhm,HOhm 700 hOhm...1200 hOhm +/- 25 hOhm,HOhm 1200 hOhm...1500 hOhm +/- 60 hOhm,DaOhm 0...300 daOhm +/- 2.5 daOhm
Sensor power supply 5 V DC at 50 mA,24 V DC at 125 mA
[Us] rated supply voltage 24 V +/- 10 % AC,20...38 V DC
Power consumption in W 20 VA at 24 V AC,10 W at 24 V DC
Realtime clock Without clock
Display type Without display
Overvoltage category II
mounting support Panel mounting with accessory,DIN rail
Width 72 mm
Height 110 mm
Depth 59 mm
net weight 0.14 kg

Environment

Directives 2014/35/EU - low voltage directive,2014/30/EU - electromagnetic compatibility
Standards IEC 61000-4-11,EN 60068-2-6 Fc,IEC 61000-4-5,EN 60730-2-9,EN 60730-1,IEC 61000-4-2,UL 60730-2-9,IEC 61000-4-4,CSA E60730-2-9,CAN/CSA-E60730-1,IEC 61000-4-3,EN 60068-2-27,UL94 (material V0)
Product certifications CE,RCM,cURus,CSA,EAC
Ambient air temperature for operation -20…65 °C conforming to UL 60730-1
Ambient air temperature for storage -30…70 °C
Relative humidity 5…95 % non-condensing
IP degree of protection IP20
Pollution degree 2

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13.500 cm
Package 1 Width 9.000 cm
Package 1 Length 12.700 cm
Package 1 Weight 222.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 8
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.005 kg

Logistical informations

Country of origin IT

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
