Schneider Electric

TM172ODM42R

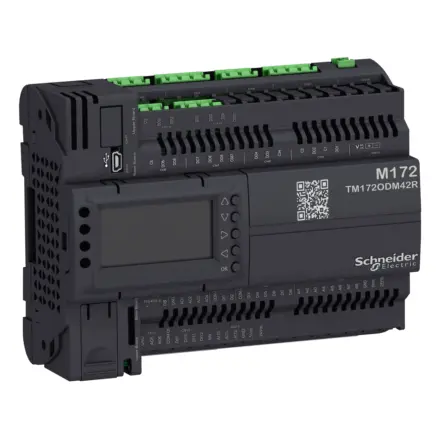

TM172ODM42R Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for TM172ODM42R Schneider Electric

TM172ODM42R Schneider Electric - Modicon M172 Optimized Display 42 I/Os

Extended Description for TM172ODM42R Schneider Electric

TM172ODM42R Schneider Electric - This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications.,This controller figures 12 digital inputs, 12 analog inputs, 12 digital outputs, 6 analog outputs, and a display.,This controller embeds one CAN expansion bus port, two RS485 ports, one USB-B port, and one Communication module port.,It is a programmable logic controller for HVAC and Pumping applications.,Dis are 24 VACDC, high-speed counters, AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm.,DOs are SPDT relays, or SPST 3A with the same or independent common, AOs are 0-10V, 4-20mA, PWM (2kHz, 24Vdc).,It measures 144mm wide, 60.5mm deep, 110mm high, and weighs 0.480kg.,This controller is designed for HVAC solutions.,It is certified by CE, RCM, EAC, CSA and CURus.,It is compatible with screw terminal blocks, remote display, and communication modules.,It is sold in a 1-piece package.,It is designed for 35mm rail mounting.,Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines.,Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£348.35 Exc. VAT
£418.02 Inc. VAT

Main

range of product Modicon M171/M172
product or component type Programmable controllers
Product specific application HVAC control
Variant Programmable
Total inputs/outputs 42
Discrete input number 12
Discrete output number 2 for relay outputs SPDT with independent common,3 for relay outputs SPST with same common,5 for relay outputs SPST with same common,2 for relay outputs SPST with independent common
Discrete output current 3 A for relay SPDT,3 A for relay SPST
Analogue input number 12 configurable by pair
Analogue output number 4 voltage, range: 0...10 V,2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz)

Complementary

Number of port 1 CAN port - screw terminal block,1 USB type mini B - USB device port Mini-B,2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP)
Input/output number 12 analog input(s),6 analog output(s),12 digital input(s),12 digital output(s)
Discrete input logic Sink or source (positive/negative)
Discrete input voltage 24 V AC/DC
Discrete input current 2.5 mA
input impedance 10 kOhm
Analogue input type impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm, impedance 0...300 daOhm - resolution: 1 daOhm at 2 kOhm,NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm, voltage 0...10 V - resolution: 1 digit at > 10 kOhm,NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (extended), current 0...20 mA/4...20 mA - resolution: 1 digit at < 150 Ohm,PTC temperature probe - 55...150 °C - resolution: 0.1 °C at 2 kOhm, voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric),Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 2 kOhm, direct input at > 10 kOhm
Measurement accuracy NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C, NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C, NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, PTC - 55...155 °C +/- 1.1 °C, Pt 1000 - 200...-100 °C +/- 10 °C, Pt 1000 - 100...-50 °C +/- 2.5 °C, Pt 1000 - 50...100 °C +/- 1.5 °C, Pt 1000 100…400 °C +/- 2.4 °C, Pt 1000 400...850 °C +/- 10 °C,0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit,0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit,4...20 mA +/- 1 % of full scale +/- 1 digit,0...10 V +/- 1 % of full scale +/- 1 digit,0...5 V +/- 1 % of full scale +/- 1 digit,HOhm 0...1500 hOhm +/- 8.5 hOhm,DaOhm 0...300 daOhm +/- 2.5 daOhm
Sensor power supply 5 V DC at 50 mA supplied by the controller,24 V DC at 150 mA supplied by the controller
[Us] rated supply voltage 24 V +/- 10 % AC,20...38 V DC
Power consumption in W 14 W at 24 V AC/DC
Realtime clock Built-in clock, clock drift <= 30 s/month at -20…65 °C
Display type Backlit LCD - 128 x 64 pixels
Overvoltage category II
Local signalling 1 LED (red) for programmable,1 LED (yellow) for programmable,1 LED (green) for programmable,1 LED (green) for power
mounting support Panel mounting with accessory,DIN rail
Width 144 mm
Height 110 mm
Depth 60.5 mm
net weight 0.385 kg

Environment

Directives 2014/30/EU - electromagnetic compatibility,2014/35/EU - low voltage directive
Standards CAN/CSA-E60730-1,CSA E60730-2-9,EN 60068-2-27,EN 60068-2-6 Fc,EN 60730-1,EN 60730-2-9,UL 60730-1,UL 60730-2-9,IEC 61000-4-2,IEC 61000-4-3,IEC 61000-4-4,IEC 61000-4-5,IEC 61000-4-6,IEC 61000-4-11,UL94 (material V0)
Product certifications EAC,CE,cURus,CSA,RCM
Ambient air temperature for operation -20…65 °C conforming to UL 60730-1,-20…60 °C horizontal conforming to UL 60730-1
Ambient air temperature for storage -30…70 °C
Relative humidity 5…95 % non-condensing
IP degree of protection IP20
Pollution degree 2
Operating altitude 0...2000 m

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.0 cm
Package 1 Width 13.5 cm
Package 1 Length 19.0 cm
Package 1 Weight 458.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 6
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.0 kg

Logistical informations

Country of origin US

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
