Description for TM2AMI4LT Schneider Electric

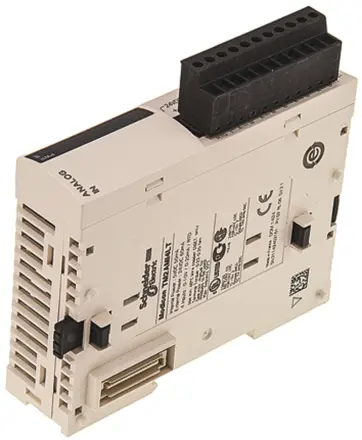

TM2AMI4LT Schneider Electric - I/O expansion module, Modicon M238 logic controller, Twido, 4 inputs voltage/current/temperature, non differential, wear part

Extended Description for TM2AMI4LT Schneider Electric

TM2AMI4LT Schneider Electric - This analog input module is part of Modicon TM2 expansion modules,It consists in 4 analog inputs, voltage 0â¦10 V, current 0â¦20 mA, and temperature probe PT100/PT1000 and is supplied with 24V dc.,It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£503.21 Exc. VAT
£603.85 Inc. VAT

Main

range of product Modicon M238 logic controller
product or component type I/O expansion module
Analogue input number 4
Analogue input type voltage 0...10 V non differential,Pt 100/Pt 1000 temperature probe - 200...600 °C non differential,Ni 100/Ni 1000 temperature probe - 50...150 °C non differential, current 0...20 mA non differential
Cross talk <= 1 LSB

Complementary

Range compatibility Twido,Advantys OTB
Analogue input resolution 12 bits
LSB value 2.5 mV voltage voltage,4.8 µA current current,0.2 °C temperature probe Pt 100/Pt 1000,0.05 °C temperature probe Ni 100/Ni 1000
Permissible continuous overload 40 mA, analogue input type: current,13 V, analogue input type: voltage
Input impedance >= 10 kOhm temperature probe,470 Ohm current,10 kOhm voltage
Sampling duration 160 ms
Acquisition period 320 ms per channel + 1 controller cycle time temperature probe,160 ms per channel + 1 controller cycle time voltage/current
Measurement error +/- 0.2 % of full scale 0...10 V 0...10 V at 25 °C,+/- 0.2 % of full scale 4...20 mA 4...20 mA at 25 °C,+/- 0.4 % of full scale Pt 100/Pt 1000, Ni 100/ Ni 1000 at 25 °C
Temperature coefficient +/- 0.004 %FS/°C, analogue input type: temperature probe,+/- 0.009 %FS/°C, analogue input type: current,+/- 0.009 %FS/°C, analogue input type: voltage
Repeat accuracy +/-0.1 %FS
Non-linearity +/- 0.02 %FS
Total error +/-0.5 %FS
type of cable Shielded cable
Insulation between channel and internal logic Photocoupler
Supply External supply
[Us] rated supply voltage 24 V DC
Supply voltage limits 20.4…28.8 V
Electrical connection 1 removable screw terminal block
Current consumption 50 mA at 5 V DC internal,60 mA at 24 V DC external
net weight 0.085 kg

Environment

Dielectric strength 2500 V between the I/O and internal logic
Width 23.5 mm
Depth 70 mm
Height 90 mm

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.17 cm
Package 1 Width 10.138 cm
Package 1 Length 12.186 cm
Package 1 Weight 146.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 18
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.07 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD
