Schneider Electric

TM3BCCO

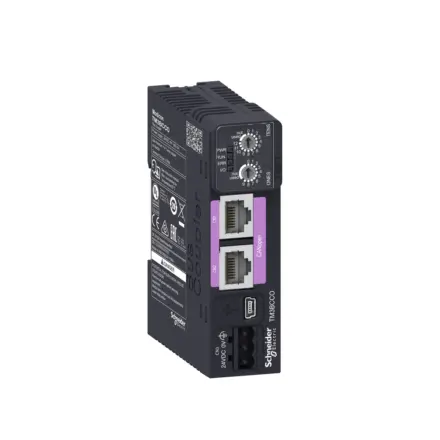

TM3BCCO Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for TM3BCCO Schneider Electric

TM3BCCO Schneider Electric - IP20 I/O Distributed Optimized TM3 Bus Coupler Module CANopen Interface

Extended Description for TM3BCCO Schneider Electric

TM3BCCO Schneider Electric - Schneider Electric TM3B Series Logic Controller for Use with CANopen

Free Delivery to UK Mainland on orders over £25

Manufacturer New

1 available
1 - 2 w.days
£273.06 Exc. VAT
£327.67 Inc. VAT

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£126.86 Exc. VAT
£152.23 Inc. VAT

Main

range of product Modicon TM3
Product compatibility Logic controller,Motion controller
product or component type I/O distributed module
Product specific application Bus coupler module

Complementary

communication port protocol CANopen
Connector type RJ45 2 CANopen daisy chain isolated,USB device port Mini-B
Transmission rate 20 kbit/s...1 Mbit/s
Topology Daisy chain
Communication network type CANopen
Communication service CANopen slave device profile
Web services Web server, USB
Current consumption 0.8 A at 24 V DC internal supply maximum 7 expansion modules
Local signalling 1 LED green/red for PWR (System Status),1 LED green/red for RUN (Run),1 LED green/red for ERR (Error),1 LED green/red for I/O status
Fixing mode By clipping locks (rail),By screws (mounting plate)
Product certifications CE,cULus,EAC,RCM,UKCA,EU-RO MR
Standards IEC 61131-2,UL/CSA 61010-1,UL/CSA 61010-2-201
Width 27 mm
Height 96.5 mm
Depth 70 mm
net weight 0.10 kg

Environment

Ambient air temperature for storage -25…70 °C
Pollution degree 2
Ambient air temperature for operation -10…60 °C
IP degree of protection IP20 conforming to IEC/EN 61010-2-201
Relative humidity 10…95 % non-condensing
Operating altitude 0...2000 m
Storage altitude 0…3000 m
Vibration resistance 3M4 on 35 x 15 mm symmetrical DIN rail

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 10.5 cm
Package 1 Length 12.5 cm
Package 1 Weight 170 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
