TM3DQ8UG

TM3DQ8UG Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for TM3DQ8UG Schneider Electric

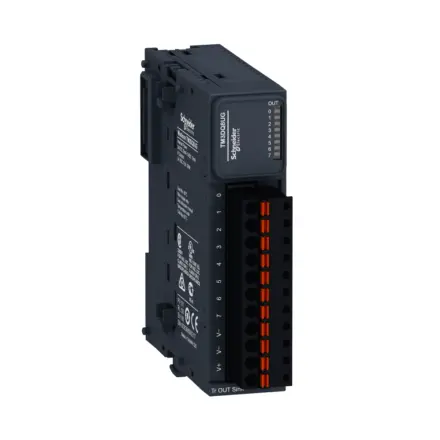

TM3DQ8UG Schneider Electric - Modicon TM3 - 8 outputs transistor NPN (spring)

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£76.86 Exc. VAT
£92.23 Inc. VAT

Main

range of product Modicon TM3
product or component type Discrete output module
Range compatibility Modicon M241,Modicon M251,Modicon M221,Modicon M262
Discrete output type Transistor
Discrete output number 8
Discrete output logic Negative logic (sink)
Discrete output voltage 24 V DC for transistor output
Discrete output current 50 mA for transistor output

Complementary

Discrete I/O number 8
Current consumption 5 mA at 5 V DC via bus connector (at state off),0 mA at 24 V DC via bus connector (at state off),20 mA at 24 V DC via bus connector (at state on),10 mA at 5 V DC via bus connector (at state on)
Response time 450 µs (turn-on),450 µs (turn-off)
Maximum leakage current 0.1 mA for transistor output
Maximum voltage drop <0.4 V
Local signalling 1 LED per channel (green) for output status
Electrical connection 11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for outputs
Maximum cable distance between devices Unshielded cable: <30 m for transistor output
Insulation Between output and internal logic at 500 V AC,Non-insulated between outputs
marking CE
Mounting support Top hat type TH35-15 rail conforming to IEC 60715,Top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit
Height 90 mm
Depth 84.6 mm
Width 27.4 mm
net weight 0.76 kg

Environment

Standards EN/IEC 61131-2
Product certifications CE,cULus,UKCA,RCM,EAC,cULus HazLoc
Resistance to electrostatic discharge 8 kV in air conforming to EN/IEC 61000-4-2,4 kV on contact conforming to EN/IEC 61000-4-2
Resistance to electromagnetic fields 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3,3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3,1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
Resistance to magnetic fields 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
Resistance to fast transients 1 kV for I/O conforming to EN/IEC 61000-4-4
Surge withstand 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC
Resistance to conducted disturbances 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6,3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011,Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011
Ambient air temperature for operation -10…35 °C vertical installation,-10…55 °C horizontal installation
Ambient air temperature for storage -25…70 °C
Relative humidity 10…95 %, without condensation (in operation),10…95 %, without condensation (in storage)
IP degree of protection IP20 with protective cover in place
Pollution degree 2
Operating altitude 0...2000 m
Storage altitude 0…3000 m
Vibration resistance 3.5 mm at 5…8.4 Hz on DIN rail,3 gn at 8.4…150 Hz on DIN rail,3.5 mm at 5…8.4 Hz on panel,3 gn at 8.4…150 Hz on panel
Shock resistance 15 gn for 11 ms

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 10.5 cm
Package 1 Length 12.5 cm
Package 1 Weight 230.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 9
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2.3 kg
Unit Type of Package 3 P06
Number of Units in Package 3 144
Package 3 Height 75 cm
Package 3 Width 40 cm
Package 3 Length 80 cm
Package 3 Weight 25.49 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
