Schneider Electric

TMAT4CSET

TMAT4CSET Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for TMAT4CSET Schneider Electric

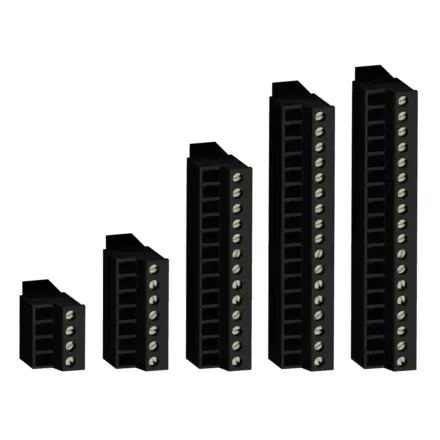

TMAT4CSET Schneider Electric - connector set for M241 - IO

Extended Description for TMAT4CSET Schneider Electric

TMAT4CSET Schneider Electric - connector set for M241 - IO,This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications.,This connector set is dedicated to Modicon M241 logic controllers.,It is composed of 8 removable connectors with screw terminals to connect to the serial line, to the I/O and to the CANopen bus.,It weighs 0.127kg.,The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions.,This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards.,The pack of this set contains 1 terminal block connector and 7 Molex connectors.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£37.31 Exc. VAT
£44.77 Inc. VAT

Main

accessory / separate part category Connection accessories
product or component type Terminal block
accessory / separate part type Screw terminal block

Complementary

Range compatibility Modicon M241
Product compatibility Logic controller
Accessory / separate part destination Modicon M241
Number of connectors 1 terminal block connector(s),7 Molex connector(s)
Electrical connection removable screw terminal blockfor connection to the CANopen bus,Molex removable screw terminalsfor serial communication,Molex removable screw terminalsfor inputs/outputs

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.0 cm
Package 1 Width 23.0 cm
Package 1 Length 12.0 cm
Package 1 Weight 136.1 g
Unit Type of Package 2 S03
Number of Units in Package 2 64
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 8.423 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue
