Schneider Electric

TPRSS065

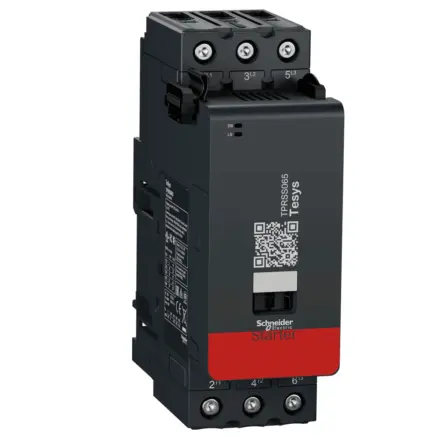

TPRSS065 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for TPRSS065 Schneider Electric

TPRSS065 Schneider Electric - Direct online SIL starter, TeSys island, 80A AC-1, 65A AC-3, 30kW / 40hp

Extended Description for TPRSS065 Schneider Electric

TPRSS065 Schneider Electric - TeSys island direct SIL starter, 3 poles, 65A/690V.,Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 65A and motors up to 30kW@400V / 40hp@480V.,In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508.,It provides motor protection functions including thermal overload (setting 3.35-65A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection.,Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module.,Mounting on DIN rail together with the other modules of the TeSys island configuration.,Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£244.64 Exc. VAT
£293.57 Inc. VAT

Main

Range TeSys
Product name TeSys island
Device short name TPRSS
product or component type SIL motor starter
Motor starter type Direct on line
Device presentation Direct starter connected to an automation controller through a bus coupler,Operational only when connected to a bus coupler
Function available Upstream voltage presence detection,Electrical line and load protection,Power and energy monitoring when connected with TPRVM voltage module,Safe stop function available when connected with a TPRSM module
Product compatibility TPRBC bus coupler,TPRVM voltage interface module,TPRSM SIL interface module
Poles description 3P (3 NO)
Utilisation category AC-1,AC-2,AC-3,AC-4,AC-3e
Motor power kW 18.5 kW at 230 V 50 Hz (AC-3),30 kW at 380...415 V 50 Hz (AC-3),30 kW at 440 V 50 Hz (AC-3),37 kW at 500 V 50 Hz (AC-3),37 kW at 690 V 50 Hz (AC-3)
motor power HP (UL / CSA) 5 hp at 120 V AC 60 Hz for 1 phase motors,10 hp at 240 V AC 60 Hz for 1 phase motors,20 hp at 208 V AC 60 Hz for 3 phases motors,20 hp at 240 V AC 60 Hz for 3 phases motors,40 hp at 480 V AC 60 Hz for 3 phases motors,50 hp at 600 V AC 60 Hz for 3 phases motors
[Ue] rated operational voltage <= 690 V AC 47...63 Hz
[Ie] rated operational current 65 A (at <50 °C) at <= 440 V AC-3,80 A (at <50 °C) at <= 440 V AC-1
[Ith] conventional free air thermal current 80 A (at 50 °C)
[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1,600 V conforming to UL 60947-4-1,600 V conforming to CSA C22.2 No 60947-4-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Overvoltage category III
Thermal protection adjustment range 3.35…65 A
Thermal overload class Class 5…30
Reset Remotely or automatically
Irms rated making capacity 1000 A at 440 V conforming to IEC 60947
Rated breaking capacity 1000 A at 440 V conforming to IEC 60947
[Icw] rated short-time withstand current 900 A 40 °C - 1 s,520 A 40 °C - 10 s,260 A 40 °C - 1 min,110 A 40 °C - 10 min
Average impedance 1.5 mOhm - Ith 80 A 50 Hz
Power dissipation per pole 6.3 W AC-3 - Ith 65 A,9.6 W AC-1 - Ith 80 A
[Uc] control circuit voltage 24 V DC supplied by the bus coupler
Current consumption 80 mA contactor sealed,500 mA contactor closing
Power dissipation in W 20.8 W at Ie AC-3

Complementary

Mechanical durability 6 Mcycles
Electrical durability 1.4 Mcycles 65 A AC-3 at Ue 440 V,0.5 Mcycles 80 A AC-1 at Ue 440 V
Maximum operating rate 3600 cyc/mn AC-3
Operating time < 80 ms closing,< 80 ms opening
Safety function Safe stop: category 0 conforming to IEC 60204-1 when associated with a TPRSM module,Safe stop: category 1 conforming to IEC 60204-1 when associated with a TPRSM module
Safety integrity level SIL 2 conforming to IEC 61508 in single channel system architecture,SILCL 2 conforming to IEC 62061 in single channel system architecture,PL = d category 2 conforming to ISO 13849-1 in single channel system architecture
Safety performance level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1,B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Protection type Thermal overload protection,Motor overheat,Overcurrent,Undercurrent,Jam,Long start,Stall,Rapid cycle lockout,Phase sequence,Rapid restart lockout,Phase reversal,Phase loss,Phase unbalance,Ground current
Monitoring type Time device ON,Time device switch ON,Number of faults,Number of switching cycles,Number of device power cycles,Average current Iavg,Average voltage Vavg,Max current Imax,Max voltage Vmax,Active and reactive power with voltage module,Active and reactive energy with voltage module,True power factor with voltage module
Local signalling 1 LED (green/red) for DS (device status),1 LED (green/red) for LS (load status)
Standards EN/IEC 60947-1,EN/IEC 60947-4-1,UL 60947-4-1,CSA C22.2 No 60947-4-1
Product certifications CSA,UL,EAC,CCC
Mounting mode Horizontal and vertical (35 mm symmetrical DIN rail)
Connections - terminals EverLink BTR screw connectors 1 cable(s) 1…35 mm² (AWG 16...AWG 2) rigid,EverLink BTR screw connectors 2 cable(s) 1…25 mm² (AWG 16...AWG 4) rigid,EverLink BTR screw connectors 1 cable(s) 1…35 mm² (AWG 16...AWG 2) flexible without cable end,EverLink BTR screw connectors 2 cable(s) 1…25 mm² (AWG 16...AWG 4) flexible without cable end,EverLink BTR screw connectors 1 cable(s) 1…35 mm² (AWG 16...AWG 2) flexible with cable end,EverLink BTR screw connectors 2 cable(s) 1…25 mm² (AWG 16...AWG 4) flexible with cable end
Tightening torque 5 N.m - cable 1…25 mm² hexagonal 4 mm,8 N.m - cable 25…35 mm² hexagonal 4 mm
Width 55 mm
Height 167 mm
Depth 125 mm
net weight 1.248 kg

Environment

Ambient air temperature for storage -25…70 °C
Ambient air temperature for operation -10…50 °C without derating,50…60 °C with current derating
Relative humidity 5…95 %
Operating altitude 0...2000 m without derating
IP degree of protection IP20
Pollution degree 2
Protective treatment TC
Fire resistance 960 °C conforming to UL 94,850 °C conforming to IEC 60695-2-1,650 °C conforming to IEC 60695-2-12
Shock resistance 15 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6,1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
Electromagnetic compatibility Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2,Radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3,Fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4,Surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5,Surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5,Conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 13.5 cm
Package 1 Length 17.0 cm
Package 1 Weight 1.321 kg
Unit Type of Package 2 S02
Number of Units in Package 2 8
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 10.889 kg

Contractual warranty

Warranty 18 months
