Schneider Electric

VBDN12

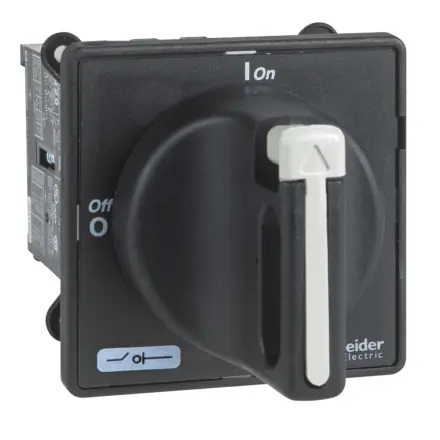

VBDN12 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for VBDN12 Schneider Electric

VBDN12 Schneider Electric - TeSys Mini-Vario - switch disconnector - 12 A - on door

Extended Description for VBDN12 Schneider Electric

VBDN12 Schneider Electric - TeSys Vario switch disconnector for door mounting, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23.,Complete unit composed of a switch body VN12, a black handle with black 60x60mm front plate KAD1PZ.,Intended for main switch disconnecting usage.,Padlockable handle, for 3 padlocks (to be ordered separately).,Handle with central fixing on door, ensuring IP65 to the mounting.,Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£9.61 Exc. VAT
£11.54 Inc. VAT

Main

Range TeSys
Product name TeSys Mini-VARIO
Device short name VBDN
product or component type Switch disconnector
Performance level Standard
Poles description 3P
Contacts type and composition 3 NO
Network type AC,DC
Control type Rotary handle
Rotary handle mounting style Direct
Handle colour Black
Handle front plate colour Black
Rotary handle padlocking 1 to 3 padlocks 4…8 mm

Complementary

marking 0 - 1
Mounting support Handle: door,Switch: door
Fixing mode Hole with 22.5 mm for handle
[Ue] rated operational voltage 690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 6 kV
[Ith] conventional free air thermal current 12 A
[Ithe] conventional enclosed thermal current 10 A
[Ie] rated operational current 8.1 A (AC-23) at 400 V
Rated operational power in W 3 kW at 230...240 V (AC-23A),4 kW at 400...415 V (AC-23A),5.5 kW at 500 V (AC-23A),7.5 kW at 690 V (AC-23A),1.5 kW at 230...240 V (AC-3),3 kW at 400...415 V (AC-3),4 kW at 500 V (AC-3),4 kW at 690 V (AC-3)
Intermittent duty class 30
Making capacity ( I Rms) 120 A at 400 V AC-21A,120 A at 400 V AC-22A,120 A at 400 V AC-23A
[Icm] rated short-circuit making capacity 0.5 kA at 400 V at Ipeak
[Icw] rated short-time withstand Rms current 140 A at 400 V duration: 1 s
Rated conditional short-circuit current 6 kA at 400 V - associated fuse 12 A aM,6 kA at 400 V - associated fuse 12 A gG
Breaking capacity 120 kA at 400 V (AC-21A),120 kA at 400 V (AC-22A),120 kA at 400 V (AC-23A)
Device composition Switch,Handle
Mechanical durability 50000 cycles
Electrical durability 30000 cycles DC-1...5,50000 cycles AC-21
Suitability for isolation Yes
Connections - terminals Power circuit: screw clamp terminals4 mm² - flexible - with cable end,Power circuit: screw clamp terminals4 mm² - solid
Tightening torque Power circuit: 0.7 N.m - on screw clamp terminals
handle front plate dimension 60 x 60 mm
Height 60 mm
Width 60 mm
net weight 0.177 kg

Environment

Standards IEC 60947-3
Product certifications UL,GL,CCC,CSA,UKCA
Protective treatment TC
IP degree of protection IP65
Mechanical robustness Vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6,Shocks 11 ms (15 gn) conforming to IEC 60068-2-27
Ambient air temperature for operation -20…50 °C
Fire resistance 960 °C conforming to IEC 60695-2-1

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 8.5 cm
Package 1 Length 12.0 cm
Package 1 Weight 178.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 24
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.776 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
