Description for VBF6 Schneider Electric

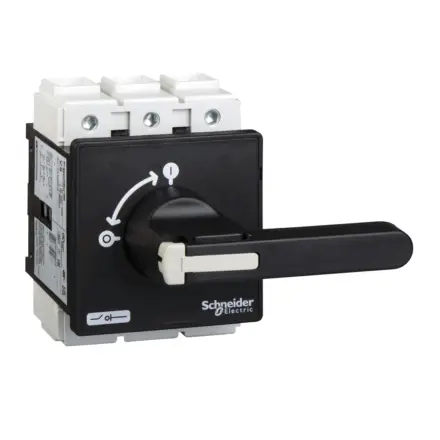

VBF6 Schneider Electric - TeSys Vario - switch disconnector - 175 A - on door

Extended Description for VBF6 Schneider Electric

VBF6 Schneider Electric - TeSys Vario switch disconnector for door mounting, 3 poles, 175A/690V, for motor switching applications up to 45kW@400V AC-23.,Complete unit composed of a switch body V6, a black handle with black 90x90mm front plate KAF3PZ.,Intended for main switch disconnecting usage.,Padlockable handle, for 3 padlocks (to be ordered separately).,Handle with 4 screws fixing on door, ensuring IP65 to the mounting.,Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£130.12 Exc. VAT
£156.14 Inc. VAT

Main

Range TeSys
Product Name TeSys VARIO
Device Short Name VBF
Device Application Preventive maintenance
Product Type Emergency stop switch disconnector

Complementary

Device Composition Handle,Switch
Mounting Support Handle: door,Switch: door
Mounting Method By 4 screws for handle
Performance Level High performance
Number of Poles 3P
Contact Type and Composition 3 NO
[Ue] IEC Rated Operational Voltage 690 V AC 50/60 Hz
IEC Rated Operational Power in W 30 kW at 230...240 V (AC-3),37 kW at 400...415 V (AC-3),37 kW at 690 V (AC-3),45 kW at 500 V (AC-3),45 kW at 690 V (AC-23A),55 kW at 500 V (AC-23A),30 kW at 230...240 V (AC-23A),45 kW at 400...415 V (AC-23A)
[Ie] Rated Operational Current 83 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current 175 A
[Ithe] Conventional Enclosed Thermal Current 140 A
Making Capacity ( I Rms) 1750 A at 400 V AC-21A,1750 A at 400 V AC-22A,1750 A at 400 V AC-23A
Breaking Capacity 1400 A at 400 V (AC-21A),1400 A at 400 V (AC-22A),1400 A at 400 V (AC-23A)
Rated Conditional Short Circuit Current 10 kA at 400 V - associated fuse 200 A aM,10 kA at 400 V - associated fuse 200 A gG
[Icm] Rated Short Circuit Making Capacity 2.8 kA at 400 V at Ipeak
[Icw] Rated Short Time Withstand Current 2100 A at 400 V duration: 1 s
[Uimp] Rated Impulse Withstand Voltage 8 kV
Suitability for Isolation Yes
Network Type AC,DC
Intermittent Duty Class 30
Control Type Rotary handle
Rotary Handle Mounting Style Direct
Handle Color Black
Handle Front Plate Color Yellow
Rotary Handle Padlocking 1 to 3 padlocks 4…8 mm
Marking 0 - 1
Mechanical Durability 30000 cycles
Electrical Durability 30000 cycles AC-21,30000 cycles DC-1...5
IEC Terminal Connection Power circuit: screw clamp terminals95 mm² - solid,Power circuit: screw clamp terminals70 mm² - flexible - with cable end
Tightening Torque Power circuit: 22.6 N.m - on screw clamp terminals
Base Dimension 90 x 90 mm
Height 125 mm
Width 90 mm
Product Weight 1.2 kg

Environment

Standards IEC 60947-3
Product Certifications GL,CSA,CCC,UL,UKCA
Degree of Protection IP20 conforming to IEC 60529,IP65
Protective Treatment TC
Mechanical Robustness Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6,Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Ambient Air Temperature for Operation -20…50 °C
Fire Resistance 960 °C conforming to IEC 60695-2-1
Compatibility Code Main switch disconnector

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 17.000 cm
Package 1 Length 17.500 cm
Package 1 Weight 1.062 kg
Unit Type of Package 2 S03
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.760 kg
Unit Type of Package 3 P06
Number of Units in Package 3 48
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 62.080 kg

Contractual warranty

Warranty 18 months
