Description for VLS3P063R2 Schneider Electric

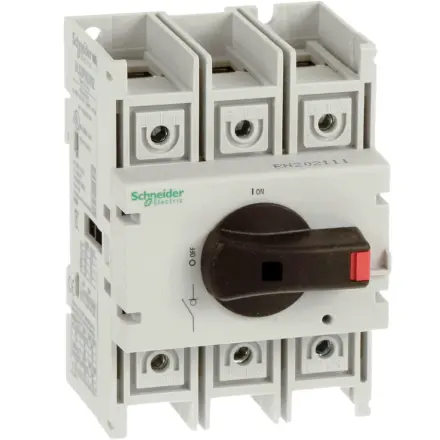

VLS3P063R2 Schneider Electric - Disconnect switch, TeSys VLS, body switch, 60A, 40HP at 480VAC, UL98, three phase, 50kA SCCR, size 2, DIN rail mount

Extended Description for VLS3P063R2 Schneider Electric

VLS3P063R2 Schneider Electric - These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more.,This family of disconnect switches has switches ranging from 16A to 125A.,The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated.,The 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated.,This disconnect switch is rated 60A per UL. It has 3 normally open poles and mounts on DIN rail.,Per UL and CSA this this disconnect switch has a 3 HP rating at 120 VAC and a 7.5 HP at 240 VAC single phase.,Per UL and CSA this disconnect switch has a 20HP rating at 200 to 208 VAC and 240 VAC, a 40 HP rating at 480 VAC and a 40 HP rating at 600 VAC three phase.,Per UL508A this this disconnect switch has up to a 50 kA at 600 V short circuit current rating (SCCR) with a 60A Type J fuse maximum.,Per IEC requirements, this disconnect switch has a 30 kW rating at 400 V, a 45 kW rating at 500 V and a 45 kW rating at 690V three phase.,The screw clamps will accept from 12 AWG to 1 AWG wire. The screw clamp terminals will also accept 4 mm to 70 mm wire.,This disconnect switch is 3.94 inches tall, 2.75 inches wide and 2.95 inches deep. The switch weighs 0.80 lbs.,There are many accessories available this TeSys VLS disconnect switch.,This TeSys VLS disconnect switch is UL Listed per UL98, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£54.19 Exc. VAT
£65.03 Inc. VAT

Complementary

[Ie] Rated Operational Current 60 A Ue: 600 V UL98 || 63 A AC-21A Ue: 400 V || 63 A AC-21A Ue: 500 V || 63 A AC-21A Ue: 690 V || 63 A AC-22A Ue: 400 V || 63 A AC-22A Ue: 500 V || 63 A AC-22A Ue: 690 V || 63 A AC-23A Ue: 400 V || 63 A AC-23A Ue: 500 V || 47 A AC-23A Ue: 690 V
Control Type rotary handle
Marking 0 - 1
Mechanical Durability 30000 cycles
[Ue] Rated Operational Voltage 690 V AC 50/60 Hz
Height 75 mm
Fixing Mode by clips back
Device Composition switch || handle
Electrical Durability 30000 cycles AC-21
Suitability For Isolation yes
Width 70 mm
[Icw] Rated Short-Time Withstand Current 2500 A 690 V 1 s
Poles Description 3P
Handle Front Plate Colour grey
[Ith] Conventional Free Air Thermal Current 63 A 55 °C
Network Frequency 50/60 Hz
Depth 100 mm
[Ithe] Conventional Enclosed Thermal Current 63 A
Making Capacity 94.5 A 690 V AC-21A || 189 A 690 V AC-22A || 630 A 690 V AC-23A
Contacts Type And Composition 3 NO
Net Weight 0.365 kg
Connections - Terminals power circuit screw clamp terminals 50-50 mm² solid || power circuit screw clamp terminals 70-70 mm² flexible - without cable end
Breaking Capacity 94.5 A 690 V AC-21A) || 189 A 690 V AC-22A) || 504 A 690 V AC-23A)
Handle Colour black
Intermittent Duty Class class 120 - 60 %
Mounting Support back DIN rail
Tightening Torque power circuit 5-6 N.m screw clamp terminals
[Ue] Rated Operational Voltage 600 V AC 50/60 Hz UL 508
[Uimp] Rated Impulse Withstand Voltage 8 kV
Network Type AC
[Icm] Rated Short-Circuit Making Capacity 3550 A 690 V
Rated Operational Power In W 30 kW 400 V AC-23A) || 45 kW 500 V AC-23A) || 45 kW 690 V AC-23A)
Rotary Handle Mounting Style direct
Rated Conditional Short-Circuit Current 50 kA 400 V 63 A gG
Performance Level high performance
Rotary Handle Padlocking 1 padlock 4-4 mm
Color Gray

Offer Sustainability

China Rohs Regulation Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive Compliant
Reach Regulation Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc Yes
Mercury Free Yes
Rohs Exemption Information Yes
Toxic Heavy Metal Free Yes

Environment

Fire Resistance 960 °C IEC 60695-2-11
Ambient Air Temperature For Operation -25-55 °C
Mechanical Robustness vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
Ip Degree Of Protection IP20 conforming to IEC 60529
Compatibility Code VLS
Standards UL98 || CSA C22.2 No 4 || IEC 60947-3
Product Certifications cULus || GL

Specifications

Product Or Component Type switch body
Device Short Name VLS3P
Range TeSys
Product Name TeSys VARIO LS

Documentation

Product Datasheet

Instruction sheet

CAD
