VVE4

VVE4 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for VVE4 Schneider Electric

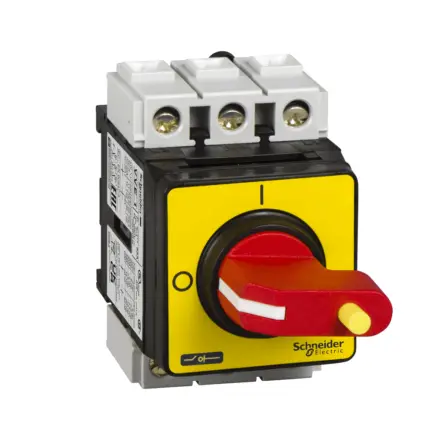

VVE4 Schneider Electric - TeSys Vario - emergency stop switch disconnector - 80 A - back of enclosure

Extended Description for VVE4 Schneider Electric

VVE4 Schneider Electric - TeSys Vario switch disconnector for mounting in enclosure or modular panel, 3 poles, 80A/690V, for motor switching applications up to 30kW@400V AC-23.,Complete unit composed of a switch body V4, a red handle with yellow 45x45mm front plate KCE1YZ.,Intended for main and emergency stop switch disconnecting usage.,Padlockable handle, for 1 padlock (to be ordered separately).,Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£50.80 Exc. VAT
£60.95 Inc. VAT

Main

Range TeSys
Product Name TeSys VARIO
Device Short Name VVE
Product Type Emergency stop switch disconnector

Complementary

Device Composition Switch,Handle
Mounting Support Switch: symmetrical rail,Switch: plate
Mounting Method By clips for switch,By screws for switch
Performance Level High performance
Number of Poles 3P
Contact Type and Composition 3 NO
[Ue] IEC Rated Operational Voltage 690 V AC 50/60 Hz
IEC Rated Operational Power in W 18.5 kW at 690 V (AC-3),15 kW at 230...240 V (AC-3),22 kW at 400...415 V (AC-3),30 kW at 500 V (AC-3),30 kW at 690 V (AC-23A),37 kW at 500 V (AC-23A),18.5 kW at 230...240 V (AC-23A),30 kW at 400...415 V (AC-23A)
[Ie] Rated Operational Current 57 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current 80 A
[Ithe] Conventional Enclosed Thermal Current 63 A
Making Capacity ( I Rms) 800 A at 400 V AC-21A,800 A at 400 V AC-22A,800 A at 400 V AC-23A
Breaking Capacity 640 A at 400 V (AC-21A),640 A at 400 V (AC-22A),640 A at 400 V (AC-23A)
Rated Conditional Short Circuit Current 10 kA at 400 V - associated fuse 80 A aM,10 kA at 400 V - associated fuse 80 A gG
[Icm] Rated Short Circuit Making Capacity 2.1 kA at 400 V at Ipeak
[Icw] Rated Short Time Withstand Current 960 A at 400 V duration: 1 s
[Uimp] Rated Impulse Withstand Voltage 8 kV
Suitability for Isolation Yes
Network Type AC,DC
Intermittent Duty Class 30
Control Type Rotary handle
Rotary Handle Mounting Style Direct
Handle Color Red
Handle Front Plate Color Yellow
Rotary Handle Padlocking 1 padlock 4…6 mm
Marking 0 - 1
Mechanical Durability 30000 cycles
Electrical Durability 30000 cycles AC-21,30000 cycles DC-1...5
IEC Terminal Connection Power circuit: screw clamp terminals25 mm² - solid,Power circuit: screw clamp terminals16 mm² - flexible - with cable end
Tightening Torque Power circuit: 4 N.m - on screw clamp terminals
Base Dimension 45 x 45 mm
Height 83 mm
Width 60 mm
Depth 110 mm
Product Weight 0.53 kg

Environment

Standards IEC 60947-3
Product Certifications GL,UL,CSA,UKCA
Degree of Protection IP65,IP65 conforming to IEC 60529
Protective Treatment TC
Mechanical Robustness Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6,Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Ambient Air Temperature for Operation -20…50 °C
Fire Resistance 960 °C conforming to IEC 60695-2-1
Compatibility Code Main switch disconnector

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.8 cm
Package 1 Width 8.3 cm
Package 1 Length 11.8 cm
Package 1 Weight 308.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 12
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.151 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
