Schneider Electric

VW33MF010T5N5

VW33MF010T5N5 Schneider Electric

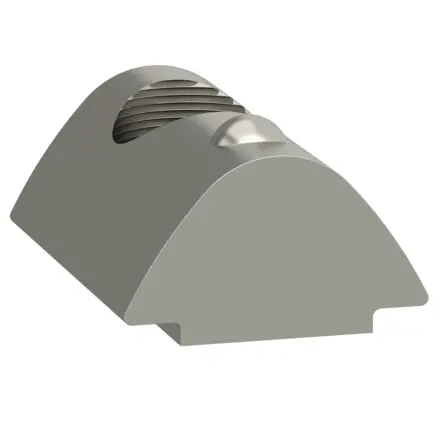

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for VW33MF010T5N5 Schneider Electric

VW33MF010T5N5 Schneider Electric - slot nuts, slot size 5, M5 - 10 pieces

Extended Description for VW33MF010T5N5 Schneider Electric

VW33MF010T5N5 Schneider Electric - This accessory belongs to Lexium PAS Toothed belt axis.,It is a slot nut to be inserted into the T slots of the axis body to fasten the axis or parts of the axis.,It has 5x steel M5.,It is designed to mount the axis on fixed support.,The maximum tightening torque for M5 thread is 5Nm (44.25lbâin).,The wrench size is 4mm.,It is made of galvanized steel, and weighs 0.096kg.,It is compatible with PAS41B/42B/42S, PAD42, TAS41, CAS41/42, CAR42, MAXH41/H42, MAXS41/S42, MAXP12/P22, MAXR12/R13/R22/R23 Lexium Cartesian robots.,It is sold in lots of 10 units.,Lexium PAS are Portal axes with movable carriage and fixed axis.,Lexium PAS portal axes are designed for applications which require positioning of heavy loads over long distances with highly dynamic performance.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£42.28 Exc. VAT
£50.74 Inc. VAT

Main

Range of product Lexium linear motion
Product or component type T-slot nut
Product specific application To mount the axis on fixed support
Accessory / separate part category Maintenance accessories
Screw type M5

Complementary

Product compatibility PAS 41 linear axis, outer dimension : 40 x 40 mm,PAS 42 linear axis, outer dimension : 60 x 60 mm,CAS 41 linear axis, outer dimension : 40 x 40 mm,CAS 42 linear axis, outer dimension : 60 x 60 mm,TAS 41 linear axis, outer dimension : 100 x 39 mm
Range compatibility Lexium CAS,Lexium PAS,Lexium TAS
Width 5 mm

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 13.0 cm
Package 1 Length 19.0 cm
Package 1 Weight 94.0 g
Unit Type of Package 2 S04
Number of Units in Package 2 34
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 4.042 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

CAD
