Schneider Electric

VW3A31207

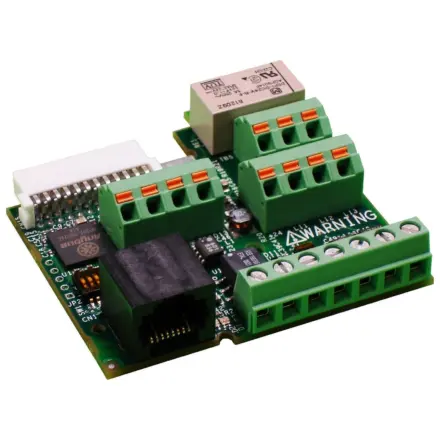

VW3A31207 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for VW3A31207 Schneider Electric

VW3A31207 Schneider Electric - Profibus DP communication card - 12 Mbps

Extended Description for VW3A31207 Schneider Electric

VW3A31207 Schneider Electric - This PROFIBUS DP communication card is an option for variable speed drives of Altivar range.,It is equipped with 3 connectors, 1 removable screw terminal block, 1 screw terminal block for connection to the PROFIBUS DP bus, 1 RJ45 connector for connection to the Modbus serial link.,It is compatible with Altivar 312 drives.,It enables integration of your variable speed drive in your process control network.,It weighs 200g.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£615.21 Exc. VAT
£738.25 Inc. VAT

Main

product or component type Communication card
Range compatibility Altivar 312 Solar,Altivar 312
communication port protocol Profibus DP
Electrical connection 1 connector RJ45, Modbus,1 removable screw terminal block for inputs/outputs,Screw terminal block, Profibus DP
Transmission rate 9600 bps, 19.2, 93.75, 187.5, 500 kbps, 1.5, 3, 6 or 12 Mbps
Number of addresses 1…127

Complementary

Input/output number AI2 and AI3: 2 analog input,LI1...LI3: 3 logic input,R2: 1 relay output
Communication service Periodic variables output : 4 PKW and 2 PZD,CiA 402 profile,Messaging via PKW periodic variables,Periodic variables input : 4 PKW and 2 PZD
Display type 1 LED,1 LED for ST (status)
net weight 0.2 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 17.500 cm
Package 1 Length 23.500 cm
Package 1 Weight 199.000 g
Unit Type of Package 2 S04
Number of Units in Package 2 16
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 4.142 kg
Unit Type of Package 3 P06
Number of Units in Package 3 64
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 26.244 kg

Contractual warranty

Warranty 18 months
