VW3A4556

VW3A4556 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for VW3A4556 Schneider Electric

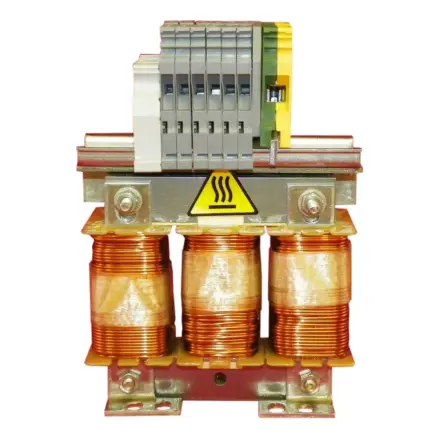

VW3A4556 Schneider Electric - line choke - 0.3 mH - 107 A - 3 phases - 260 W - for variable speed drive

Extended Description for VW3A4556 Schneider Electric

VW3A4556 Schneider Electric - This line choke is an option for variable speed drives of Altivar range.,Its rated current is equal to 107A.,It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive.,Its protection index is IP00.,It has an inductance value of 0.3mH.,It weighs 16kg and its dimensions are, 270mm wide, 210mm high, 180mm deep.,Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£581.10 Exc. VAT
£697.32 Inc. VAT

Main

range of product Altivar
product or component type Line/motor choke
Product compatibility ATV71HD75Y - line choke - 1 per drive,Variable speed drive ATV340 motor: 22 kW 380...480 V - line choke - 1 per drive,ATV61HD15M3X - line choke - 1 per drive,ATV61HD30N4 - line choke - 1 per drive,ATV61HD37N4 - line choke - 1 per drive,ATV61HD45N4 - line choke - 1 per drive,ATV61HD55N4 - line choke - 1 per drive,ATV61HD55Y - line choke - 1 per drive,ATV61HD75Y - line choke - 1 per drive,ATV61HD90Y - line choke - 1 per drive,ATV61WD30N4 - line choke - 1 per drive,ATV61WD30N4C - line choke - 1 per drive,ATV61WD37N4 - line choke - 1 per drive,ATV61WD37N4C - line choke - 1 per drive,ATV61WD45N4 - line choke - 1 per drive,ATV61WD45N4C - line choke - 1 per drive,ATV61WD55N4 - line choke - 1 per drive,ATV61WD55N4C - line choke - 1 per drive,ATV71HD15M3X - line choke - 1 per drive,ATV71HD30N4 - line choke - 1 per drive,ATV71HD37N4 - line choke - 1 per drive,ATV71HD45N4 - line choke - 1 per drive,ATV71HD55N4 - line choke - 1 per drive,ATV71HD55Y - line choke - 1 per drive,ATV71HD90Y - line choke - 1 per drive,ATV71WD30N4 - line choke - 1 per drive,ATV71WD37N4 - line choke - 1 per drive,ATV71WD45N4 - line choke - 1 per drive,ATV71WD55N4 - line choke - 1 per drive,Variable speed drive ATV320 motor: 11 kW 200...240 V - three phase - motor choke - 1 per drive,Variable speed drive ATV320 motor: 15 kW 200...240 V - three phase - motor choke - 1 per drive,Variable speed drive ATV630 motor: 55 kW 500...690 V - three phase - line choke - 1 per drive,Variable speed drive ATV630 motor: 75 kW 500...690 V - three phase - line choke - 1 per drive,Variable speed drive ATV630 motor: 90 kW 500...690 V - three phase - line choke - 1 per drive,Variable speed drive ATV930 motor: 55 kW 500...690 V - three phase - line choke - 1 per drive,Variable speed drive ATV930 motor: 75 kW 500...690 V - three phase - line choke - 1 per drive,Variable speed drive ATV930 motor: 90 kW 500...690 V - three phase - line choke - 1 per drive,Variable speed drive ATV630 motor: 600 V - three phase - line choke - 75 hp - 1 per drive,Variable speed drive ATV630 motor: 600 V - three phase - line choke - 100 hp - 1 per drive,Variable speed drive ATV930 motor: 600 V - three phase - line choke - 100 hp - 1 per drive,Variable speed drive ATV930 motor: 600 V - three phase - line choke - 75 hp - 1 per drive
number of phases Three phase
Range compatibility Altivar Machine ATV340,Altivar Machine ATV320,Altivar 71,Altivar 61,Altivar Process ATV600,Altivar Process ATV900,Easy Altivar 310
device application Reduction of current harmonics,Reduction of overvoltages at motor terminals
Value of inductance 0.3 mH
[In] rated current 107 A
Thermal losses 260 W
Electrical connection Bare wires diameter: 6.5 mm

Complementary

power supply frequency 50...60 Hz
Max current 1.65 x nominal current (duration = 60 s)
Maximum voltage drop at rated load 5 %
Electrical insulation class Class F
Minimum clearance distance 5.5 mm IEC 60664
Leakage distance 11.5 mm conforming to IEC 60664
net weight 16 kg
Width 270 mm
Height 210 mm
Depth 180 mm

Environment

Standards EN 50178,IEC 60076 (with HD398),VDE 0160 level 1
IP degree of protection Choke: IP00,Terminals: IP00
Environmental characteristic 3B1 conforming to IEC 721-3-3,3C2 conforming to IEC 721-3-3,3S1 conforming to IEC 721-3-3
Pollution degree 2 conforming to EN 50178
Vibration resistance 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6,1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Relative humidity 0…95 %
Ambient air temperature for operation 45…55 °C (with current derating of 2 % per °C),0…45 °C (without current derating)
Ambient air temperature for storage -25…70 °C
Operating altitude <= 1000 m without current derating,1000...3000 m with current derating 1 % per 100 m

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 40.000 cm
Package 1 Width 60.000 cm
Package 1 Length 46.000 cm
Package 1 Weight 23.000 kg
Unit Type of Package 2 P06
Number of Units in Package 2 2
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 54.500 kg

Contractual warranty

Warranty 18 months
