Schneider Electric

VW3A4707

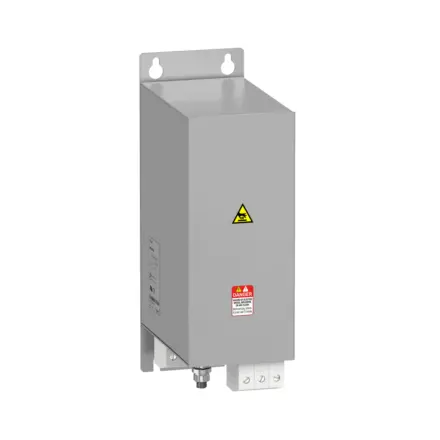

VW3A4707 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for VW3A4707 Schneider Electric

VW3A4707 Schneider Electric - EMC radio interference input filter - for variable speed drive - 160 A

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£646.01 Exc. VAT
£775.21 Inc. VAT

Main

range of product Altivar
product or component type EMC input filter
Range compatibility Altivar Process ATV900,Altivar Machine ATV340,Altivar Process ATV600
Product compatibility Variable speed drive ATV630 wall mount, motor: 55 kW, 380...480 V,Variable speed drive ATV630 wall mount, motor: 30 kW, 200...240 V,Variable speed drive ATV630 wall mount, motor: 37 kW, 200...240 V,Variable speed drive ATV650 wall mount, motor: 55 kW, 380...480 V,Variable speed drive ATV930 wall mount, motor: 55 kW, 380...480 V,Variable speed drive ATV930 wall mount, motor: 30 kW, 200...240 V,Variable speed drive ATV930 wall mount, motor: 37 kW, 200...240 V,Variable speed drive ATV950 wall mount, motor: 55 kW, 380...480 V,Variable speed drive ATV340 motor: 45 kW, 380...480 V
Product specific application Radio interference input filter
Mounting location At variable speed drive side
[In] rated current 160 A
Thermal losses 25 W
Network number of phases Three phase

Complementary

Electrical connection Terminal 150 mm² 300 kcmil
Maximum motor cable length 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V,300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V,150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V,300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V,50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V,50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 380...480 V
maximum earth leakage current 13.9 mA at 400 V 50 Hz TN,13.9 mA at 400 V 50 Hz TT
power supply voltage 200…240 V,380…480 V
Tolerance 10 %
Mechanical robustness Shocks class 3M4 conforming to IEC 60721-3-3,Vibrations class 3M4 conforming to IEC 60721-3-3
Width 130 mm
Height 395 mm
Depth 240 mm
net weight 8.5 kg

Environment

IP degree of protection IP20mounting side by side,IP21with kit VW3A47907
Relative humidity 5…95 % without condensation conforming to IEC 61800-5-1
Ambient air temperature for operation -10…50 °C (without current derating),50…60 °C (with current derating 1.5 % per °C)
Ambient air temperature for storage -40…70 °C
Operating altitude 0...1000 m without current derating,1000...4000 m with current derating 1 % per 100 m
Standards IEC 61800-3

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 19.000 cm
Package 1 Width 29.500 cm
Package 1 Length 46.000 cm
Package 1 Weight 9.871 kg
Unit Type of Package 2 P06
Number of Units in Package 2 12
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 126.452 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
