Schneider Electric

VW3A5101

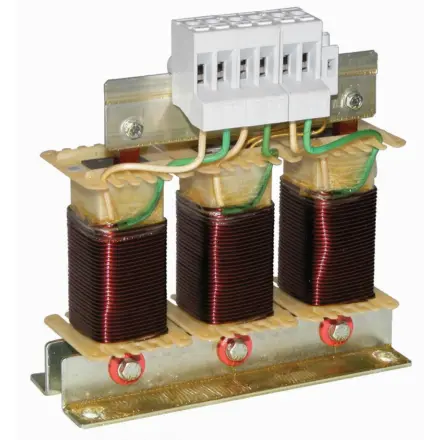

VW3A5101 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for VW3A5101 Schneider Electric

VW3A5101 Schneider Electric - motor choke - 12 A - for variable speed drive

Extended Description for VW3A5101 Schneider Electric

VW3A5101 Schneider Electric - This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range.,Its rated current is equal to 12A.,It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths.,Its protection index is IP00.,It weighs 5.5kg.,It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£190.98 Exc. VAT
£229.17 Inc. VAT

Main

product or component type Motor choke
Range compatibility Altivar 61,Altivar 71
Product specific application Output filter
[In] rated current 12 A
Product compatibility ATV61H075M3, ATV61H075N4, ATV61HU15M3, ATV61HU15N4, ATV61HU22M3, ATV61HU22N4, ATV61HU30N4, ATV61HU40N4, ATV61W075N4, ATV61W075N4C, ATV61WU15N4, ATV61WU15N4C, ATV61WU22N4, ATV61WU22N4C, ATV61WU30N4, ATV61WU30N4C, ATV61WU40N4, ATV61WU40N4C, ATV71H037M3, ATV71H075M3, ATV71H075N4, ATV71HU15M3, ATV71HU15N4, ATV71HU22M3, ATV71HU22N4, ATV71HU30N4, ATV71HU40N4, ATV71P075N4Z, ATV71PU15N4Z, ATV71PU22N4Z, ATV71PU30N4Z, ATV71PU40N4Z, ATV71W075N4, ATV71WU15N4, ATV71WU22N4, ATV71WU30N4, ATV71WU40N4
nedded quantity 1
Electrical connection Terminal, connection capacity: 10 mm² / AWG 6

Complementary

Maximum motor cable length 75 m shielded cable P motor 0.75…4 kW at 380...480 V 1,90 m unshielded cable P motor 0.75…4 kW at 380...480 V 1,150 m shielded cable P motor 0…2.2 kW at 200...240 V 1,300 m unshielded cable P motor 0…2.2 kW at 200...240 V 1
dv/dt 500 V/µs max at 400 V
Thermal losses 150 W
Tightening torque 1.5 N.m
maximum drive output frequency 100 Hz
Protection type Thermal protection by temperature-controlled switch, tripping temperature: 125 °C for <250 V AC, <0.5 A
Ambient air temperature for operation -10…50 °C
net weight 5.5 kg

Environment

IP degree of protection IP20 (with kits VW3A9612,613),IP00
Ambient air temperature for storage -25…70 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 27.000 cm
Package 1 Width 28.000 cm
Package 1 Length 27.000 cm
Package 1 Weight 4.138 kg
Unit Type of Package 2 P06
Number of Units in Package 2 8
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 47.176 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
