Schneider Electric

VW3A5103

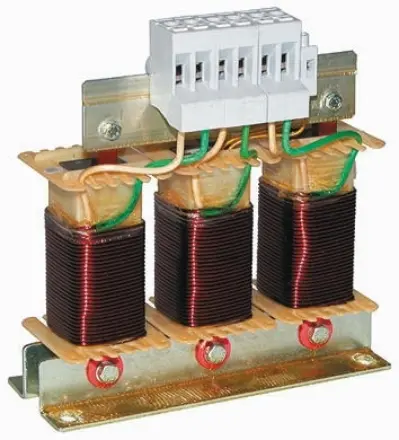

VW3A5103 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for VW3A5103 Schneider Electric

VW3A5103 Schneider Electric - motor choke - 90 A - for variable speed drive

Extended Description for VW3A5103 Schneider Electric

VW3A5103 Schneider Electric - This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range.,Its rated current is equal to 90A.,It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths.,Its protection index is IP00.,It weighs 10kg.,It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.

Free Delivery to UK Mainland on orders over £25

2 available
1 - 2 w.days
£695.01 Exc. VAT
£834.01 Inc. VAT

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£318.08 Exc. VAT
£381.69 Inc. VAT

Main

product or component type Motor choke
Range compatibility Altivar 212,Altivar 61,Altivar 71,Altivar Process ATV900,Altivar Process ATV600
Product specific application Output filter
[In] rated current 90 A
Product compatibility ATV61H075N4, ATV61HU15N4, ATV61HU22N4, ATV61HU30N4, ATV61HU40N4, ATV61W075N4, ATV61W075N4C, ATV61WU15N4, ATV61WU15N4C, ATV61WU22N4, ATV61WU22N4C, ATV61WU30N4, ATV61WU30N4C, ATV61WU40N4, ATV61WU40N4C, ATV71H075N4, ATV71HU15N4, ATV71HU22N4, ATV71HU30N4, ATV71HU40N4, ATV71P075N4Z, ATV71PU15N4Z, ATV71PU22N4Z, ATV71PU30N4Z, ATV71PU40N4Z, ATV71W075N4, ATV71WU15N4, ATV71WU22N4, ATV71WU30N4, ATV71WU40N4, ATV61HD11N4, ATV61HD11Y, ATV61HD15N4, ATV61HD18N4, ATV61HU22S6X, ATV61HU30M3, ATV61HU30S6X, ATV61HU30Y, ATV61HU40M3, ATV61HU40S6X, ATV61HU40Y, ATV61HU55M3, ATV61HU55N4, ATV61HU55S6X, ATV61HU55Y, ATV61HU75M3, ATV61HU75N4, ATV61HU75S6X, ATV61HU75Y, ATV61WD11N4, ATV61WD11N4C, ATV61WD15N4, ATV61WD15N4C, ATV61WD18N4, ATV61WD18N4C, ATV61WU55N4, ATV61WU55N4C, ATV61WU75N4, ATV61WU75N4C, ATV71HD11N4, ATV71HD11Y, ATV71HD15N4, ATV71HD18N4, ATV71HU15S6X, ATV71HU22S6X, ATV71HU22Y, ATV71HU30M3, ATV71HU30S6X, ATV71HU30Y, ATV71HU40M3, ATV71HU40S6X, ATV71HU40Y, ATV71HU55M3, ATV71HU55N4, ATV71HU55S6X, ATV71HU55Y, ATV71HU75M3, ATV71HU75N4, ATV71HU75S6X, ATV71HU75Y, ATV71PD11N4Z, ATV71PU55N4Z, ATV71PU75N4Z, ATV71WD11N4, ATV71WD15N4, ATV71WD18N4, ATV71WU55N4, ATV71WU75N4, ATV212H075M3X, ATV212H075N4, ATV212HD11M3X, ATV212HD11N4, ATV212HU15M3X, ATV212HU15N4, ATV212HU22M3X, ATV212HU22N4, ATV212HU30M3X, ATV212HU30N4, ATV212HU40M3X, ATV212HU40N4, ATV212HU55M3X, ATV212HU55N4, ATV212HU75M3X, ATV212HU75N4, ATV212W075N4, ATV212W075N4C, ATV212WD11N4, ATV212WD11N4C, ATV212WU15N4, ATV212WU15N4C, ATV212WU22N4, ATV212WU22N4C, ATV212WU30N4, ATV212WU30N4C, ATV212WU40N4, ATV212WU40N4C, ATV212WU55N4, ATV212WU55N4C, ATV212WU75N4, ATV212WU75N4C, ATV61HD11M3X, ATV61HD15M3X, ATV61HD15Y, ATV61HD18M3X, ATV61HD18Y, ATV61HD22M3X, ATV61HD22N4, ATV61HD22Y, ATV61HD30N4, ATV61HD30Y, ATV61HD37N4, ATV61WD22N4, ATV61WD22N4C, ATV61WD30N4, ATV61WD30N4C, ATV61WD37N4, ATV61WD37N4C, ATV71HD11M3X, ATV71HD15M3X, ATV71HD15Y, ATV71HD18M3X, ATV71HD18Y, ATV71HD22M3X, ATV71HD22N4, ATV71HD22Y, ATV71HD30Y, ATV71HD37N4, ATV71WD30N4, ATV71WD37N4,ATV630 variable speed drive - 2.2 kW, 500...690 V three phase,ATV630 variable speed drive - 3 kW, 500...690 V three phase,ATV630 variable speed drive - 4 kW, 500...690 V three phase,ATV630 variable speed drive - 5.5 kW, 500...690 V three phase,ATV630 variable speed drive - 7.5 kW, 500...690 V three phase,ATV630 variable speed drive - 11 kW, 500...690 V three phase,ATV930 variable speed drive - 2.2 kW, 500...690 V three phase,ATV930 variable speed drive - 3 kW, 500...690 V three phase,ATV930 variable speed drive - 4 kW, 500...690 V three phase,ATV930 variable speed drive - 5.5 kW, 500...690 V three phase,ATV930 variable speed drive - 7.5 kW, 500...690 V three phase,ATV930 variable speed drive - 11 kW, 500...690 V three phase,ATV630 variable speed drive, 3 hp, 600 V three phase,ATV630 variable speed drive, 5 hp, 600 V three phase,ATV630 variable speed drive, 7.5 hp, 600 V three phase,ATV630 variable speed drive, 10 hp, 600 V three phase,ATV630 variable speed drive, 15 hp, 600 V three phase,ATV930 variable speed drive, 3 hp, 600 V three phase,ATV930 variable speed drive, 5 hp, 600 V three phase,ATV930 variable speed drive, 7.5 hp, 600 V three phase,ATV930 variable speed drive, 10 hp, 600 V three phase,ATV930 variable speed drive, 15 hp, 600 V three phase
nedded quantity 1
Electrical connection Bare wires diameter: 9 mm

Complementary

Maximum motor cable length 300 m shielded cable P motor 2.2…7.5 kW at 200...240 V 1,300 m unshielded cable P motor 2.2…7.5 kW at 200...240 V 1,150 m shielded cable P motor 11…22 kW at 200...240 V 1,300 m unshielded cable P motor 11…22 kW at 200...240 V 1,160 m shielded cable P motor 0.75…18.5 kW at 380...480 V 1,200 m unshielded cable P motor 0.75…18.5 kW at 380...480 V 1,140 m shielded cable P motor 22…30 kW at 380...480 V 1,170 m unshielded cable P motor 22…30 kW at 380...480 V 1,75 m shielded cable P motor 2.2…7.5 kW at 500...600 V 1,150 m unshielded cable P motor 2.2…7.5 kW at 500...600 V 1,65 m shielded cable P motor 2.2…30 kW at 500...690 V 1,100 m unshielded cable P motor 2.2…30 kW at 500...690 V 1,150 m shielded cable P motor 2.2…7.5 kW at 500...690 V 2,250 m unshielded cable P motor 2.2…7.5 kW at 500...690 V 2,100 m shielded cable P motor 2.2…30 kW at 500...690 V 2,150 m unshielded cable P motor 2.2…30 kW at 500...690 V 2,97 m shielded cable P motor 37 kW at 380...480 V 1,166 m unshielded cable P motor 37 kW at 380...480 V 1
dv/dt 500 V/µs max at 400 V,750 V/µs max at 500 V,1000 V/µs max at 690 V
Thermal losses 350 W
maximum drive output frequency 100 Hz
Protection type Thermal protection by temperature-controlled switch, tripping temperature: 125 °C for <250 V AC, <0.5 A
Ambient air temperature for operation -10…50 °C
net weight 10 kg

Environment

IP degree of protection IP20 (with kits VW3A9612,613),IP00
Ambient air temperature for storage -25…70 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 28.000 cm
Package 1 Width 26.500 cm
Package 1 Length 28.000 cm
Package 1 Weight 9.711 kg
Unit Type of Package 2 P06
Number of Units in Package 2 8
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 90.816 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
