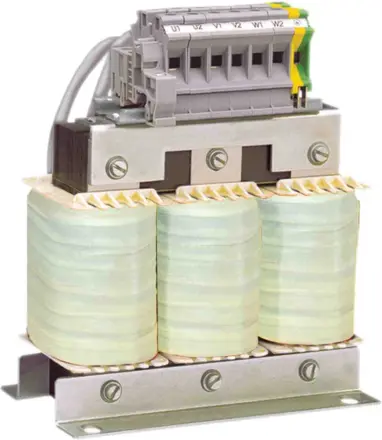

VW3A5105 Schneider Electric - motor choke - 314 A - for variable speed drive ATV61/ATV71 - IP00

Extended Description for VW3A5105 Schneider Electric

VW3A5105 Schneider Electric - This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range.,Its rated current equal to 314A.,It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths.,Its protection index is IP00.,It weighs 32 kg.,It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.,It is sold in indivisible quantity of 3.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£846.57 Exc. VAT
£1,015.88 Inc. VAT

Main

product or component type Motor choke
Range compatibility Altivar 71Q,Altivar 61Q,Altivar 61,Altivar 71
Product specific application Output filter
[In] rated current 314 A
Product compatibility ATV61HC11N4, ATV61HC13N4, ATV61HC20Y, ATV61HC25Y, ATV61HD55M3X, ATV61HD75M3X, ATV61QC13N4, ATV61QC16N4, ATV61QC16Y, ATV61QC20Y, ATV71HC11N4, ATV71HC13N4, ATV71HC16Y, ATV71HC20Y, ATV71HD55M3X, ATV71HD75M3X, ATV71QC11N4, ATV71QC13N4, ATV71QC13Y, ATV71QC16Y
nedded quantity 3
Electrical connection Tag connector M10

Complementary

Maximum motor cable length 150 m shielded cable P motor 55…75 kW at 200...240 V 1,300 m unshielded cable P motor 55…75 kW at 200...240 V 1,150 m shielded cable P motor 110…132 kW at 380...480 V 1,250 m unshielded cable P motor 110…132 kW at 380...480 V 1,150 m shielded cable P motor 160…250 kW at 500...690 V 1,250 m unshielded cable P motor 160…250 kW at 500...690 V 1,250 m shielded cable P motor 160…250 kW at 500...690 V 2,400 m unshielded cable P motor 160…250 kW at 500...690 V 2
dv/dt 500 V/µs max at 400 V,750 V/µs max at 500 V,1000 V/µs max at 690 V
Thermal losses 475 W
maximum drive output frequency 100 Hz
Ambient air temperature for operation -10…50 °C
net weight 32 kg

Environment

IP degree of protection IP20 (with kits VW3A9612,613),IP00
Ambient air temperature for storage -25…70 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 47 cm
Package 1 Width 39 cm
Package 1 Length 59 cm
Package 1 Weight 38 kg

Contractual warranty

Warranty 18 months
