Description for VW3A5107 Schneider Electric

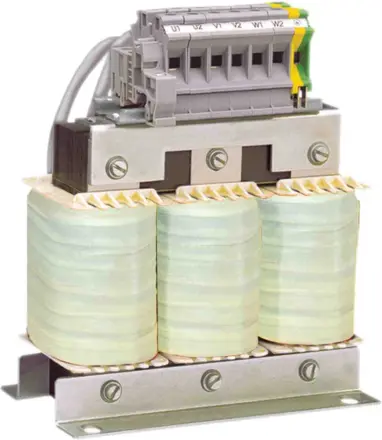

VW3A5107 Schneider Electric - motor choke - 759 A - for variable speed drive Altivar - IP00

Extended Description for VW3A5107 Schneider Electric

VW3A5107 Schneider Electric - This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range.,Its rated current equal to 759A.,It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths.,Its protection index is IP00.,It weighs 93 kg.,It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,663.30 Exc. VAT
£1,995.96 Inc. VAT

Main

product or component type Motor choke
Range compatibility Altivar 71,Altivar Process ATV900,Altivar 61Q,Altivar 61,Altivar 71Q,Altivar Process ATV600
Product specific application Output filter
[In] rated current 759 A
Product compatibility ATV71HC25N4, ATV61HC25N4, ATV61HC31N4, ATV61HC40N4, ATV61HC50Y, ATV61HC63Y, ATV61QC31N4, ATV61QC40N4, ATV61QC40Y, ATV61QC50Y, ATV71HC28N4, ATV71HC31N4, ATV71HC40N4, ATV71HC40Y, ATV71HC50Y, ATV71QC25N4, ATV71QC31N4, ATV71QC31Y, ATV71QC40Y,ATV630 variable speed drive wall mount - 250 kW, 380...480 V,ATV630 variable speed drive wall mount - 315 kW, 380...480 V,ATV930 variable speed drive wall mount - 250 kW, 380...480 V,ATV930 variable speed drive wall mount - 315 kW, 380...480 V
nedded quantity 3
Electrical connection Tag connector 2 x M12

Complementary

Maximum motor cable length 200 m shielded cable P motor 250…355 kW at 380...480 V 1,250 m unshielded cable P motor 250…355 kW at 380...480 V 1,150 m shielded cable P motor 400…630 kW at 500...690 V 1,250 m unshielded cable P motor 400…630 kW at 500...690 V 1,250 m shielded cable P motor 400…630 kW at 500...690 V 2,400 m unshielded cable P motor 400…630 kW at 500...690 V 2
dv/dt 500 V/µs max at 400 V,750 V/µs max at 500 V,1000 V/µs max at 690 V
Thermal losses 598 W
maximum drive output frequency 100 Hz
Ambient air temperature for operation -10…50 °C
net weight 93 kg

Environment

IP degree of protection IP20 (with kits VW3A9612,613),IP00
Ambient air temperature for storage -25…70 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 75.000 cm
Package 1 Width 60.000 cm
Package 1 Length 80.000 cm
Package 1 Weight 100.500 kg

Contractual warranty

Warranty 18 months
