Description for VW3A5304 Schneider Electric

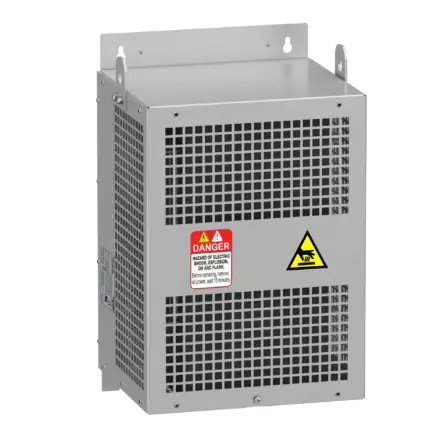

VW3A5304 Schneider Electric - output dv/dt filter for variable speed drive - IP20

Extended Description for VW3A5304 Schneider Electric

VW3A5304 Schneider Electric - This dv/dt filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range.,Its rated current is equal to 50A.,It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths.,Its protection index is IP20.,It weighs 18kg.,It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£452.41 Exc. VAT
£542.89 Inc. VAT

Main

product or component type Dv/dt filter
Range compatibility Altivar Process ATV900,Altivar Process ATV600,Easy Altivar 610,Altivar Machine ATV340
Product specific application Output filter
[In] rated current 50 A
Product compatibility ATV630 variable speed drive wall mount - 11 kW, 200...240 V,ATV630 variable speed drive wall mount - 15 kW, 380...480 V,ATV630 variable speed drive wall mount - 18.5 kW, 380...480 V,ATV630 variable speed drive wall mount - 22 kW, 380...480 V,ATV650 variable speed drive wall mount - 15 kW, 380...480 V,ATV650 variable speed drive wall mount - 18.5 kW, 380...480 V,ATV650 variable speed drive wall mount - 22 kW, 380...480 V,ATV610 variable speed drive - 18.5 kW, 380...415 V,ATV610 variable speed drive - 22 kW, 380...415 V,ATV630 variable speed drive wall mount - 5.5 kW, 200...240 V,ATV630 variable speed drive wall mount - 7.5 kW, 200...240 V,ATV930 variable speed drive wall mount - 11 kW, 200...240 V,ATV930 variable speed drive wall mount - 15 kW, 380...480 V,ATV930 variable speed drive wall mount - 18.5 kW, 380...480 V,ATV930 variable speed drive wall mount - 22 kW, 380...480 V,ATV950 variable speed drive wall mount - 15 kW, 380...480 V,ATV950 variable speed drive wall mount - 18.5 kW, 380...480 V,ATV950 variable speed drive wall mount - 22 kW, 380...480 V
nedded quantity 1
Electrical connection Terminal block, connection capacity: 16 mm² / AWG 6

Complementary

Maximum motor cable length 500 m unshielded cable,300 m shielded cable
dv/dt 3000 V/µs max at 200...240 V,3000 V/µs max at 380...480 V
Thermal losses 65 W at 4 kHz
maximum drive output frequency 100 Hz
Ambient air temperature for operation -10…50 °C (without current derating),50…60 °C (with current derating 1.5 % per °C)
Operating altitude 0...1000 m without current derating,1000...4000 m with current derating 1 % per 100 m
Width 300 mm
Height 560 mm
Depth 245 mm
net weight 18 kg

Environment

IP degree of protection IP20,IP21 (with kit VW3A53903)
Ambient air temperature for storage -40…70 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 38.0 cm
Package 1 Width 38.0 cm
Package 1 Length 60.0 cm
Package 1 Weight 25.4 kg

Contractual warranty

Warranty 18 months
