Schneider Electric

VW3A5402

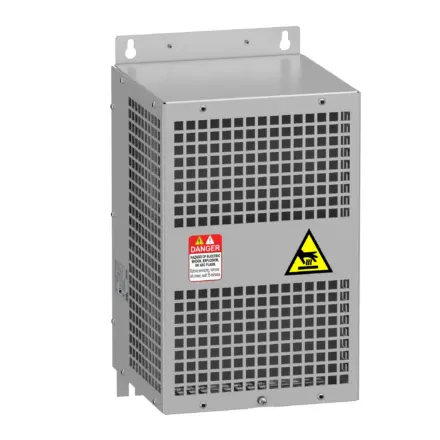

VW3A5402 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for VW3A5402 Schneider Electric

VW3A5402 Schneider Electric - output sinus filter - 15 A - for variable speed drive

Extended Description for VW3A5402 Schneider Electric

VW3A5402 Schneider Electric - This sinus filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range.,Its rated current is equal to 15A.,It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths.,Its protection index is IP20.,It weighs 13.5kg.,It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£412.88 Exc. VAT
£495.46 Inc. VAT

Main

product or component type Sinus filter
Range compatibility Altivar Process ATV900,Altivar Process ATV600
Product specific application Output filter

Complementary

Maximum motor cable length 1000 m unshielded cable,500 m shielded cable
[In] rated current 15 A
Thermal losses 76 W at 4 kHz
Product compatibility Variable speed drive ATV630 wall mount, motor: 3 kW, 380...480 V,Variable speed drive ATV630 wall mount, motor: 4 kW, 380...480 V,Variable speed drive ATV630 wall mount, motor: 5.5 kW, 380...480 V,Variable speed drive ATV630 wall mount, motor: 1.5 kW, 200...240 V,Variable speed drive ATV630 wall mount, motor: 2.2 kW, 200...240 V,Variable speed drive ATV630 wall mount, motor: 3 kW, 200...240 V,Variable speed drive ATV650 wall mount, motor: 3 kW, 380...480 V,Variable speed drive ATV650 wall mount, motor: 4 kW, 380...480 V,Variable speed drive ATV650 wall mount, motor: 5.5 kW, 380...480 V,Variable speed drive ATV930 wall mount, motor: 3 kW, 380...480 V,Variable speed drive ATV930 wall mount, motor: 4 kW, 380...480 V,Variable speed drive ATV930 wall mount, motor: 5.5 kW, 380...480 V,Variable speed drive ATV930 wall mount, motor: 1.5 kW, 200...240 V,Variable speed drive ATV930 wall mount, motor: 2.2 kW, 200...240 V,Variable speed drive ATV930 wall mount, motor: 3 kW, 200...240 V,Variable speed drive ATV950 wall mount, motor: 3 kW, 380...480 V,Variable speed drive ATV950 wall mount, motor: 4 kW, 380...480 V,Variable speed drive ATV950 wall mount, motor: 5.5 kW, 380...480 V
Electrical connection terminal block, connection capacity: 6 mm² / AWG 10
Operating altitude <= 1000 m without current derating,1000...4000 m with current derating 1 % per 100 m
Switching frequency 4...8 kHz
Maximum output frequency 100 Hz
Maximum voltage drop at rated load 8 %
Permissible voltage 480 V AC
Max current 1.20 x nominal current (duration = 60 s)
Width 220 mm
Height 455 mm
Depth 210 mm
net weight 13.5 kg

Environment

IP degree of protection IP20,IP21 (with kit VW3A53901)
Environmental characteristic Biological pollution resistance class 3B1 conforming to IEC 60721-3-3,Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3,Dust pollution resistance class 3S3 conforming to IEC 60721-3-3
Pollution degree 2 conforming to IEC 61800-5-1
Relative humidity 5…95 % without condensation
Ambient air temperature for operation 50…60 °C (with current derating 1.5 % per °C),-15…50 °C (without current derating)
Ambient air temperature for storage -40…70 °C
Mechanical robustness Shocks class 3M4 conforming to IEC 60721-3-3,Vibrations class 3M4 conforming to IEC 60721-3-3

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 26.000 cm
Package 1 Width 36.000 cm
Package 1 Length 52.000 cm
Package 1 Weight 18.400 kg
Unit Type of Package 2 P06
Number of Units in Package 2 4
Package 2 Height 84.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 85.000 kg

Contractual warranty

Warranty 18 months
