VW3A7106

VW3A7106 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for VW3A7106 Schneider Electric

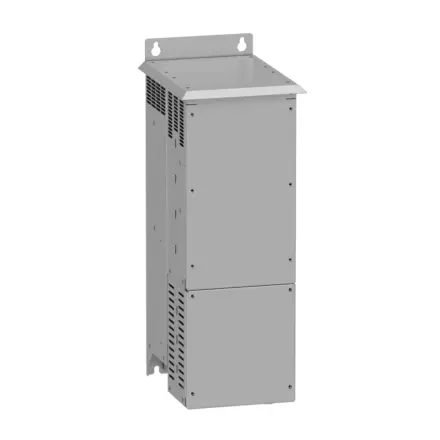

VW3A7106 Schneider Electric - braking unit - 60 kW - 200/240 V - for variable speed drive

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,980.37 Exc. VAT
£2,376.44 Inc. VAT

Main

Range compatibility Altivar Process ATV900
Product compatibility Variable speed drive ATV930 without braking chopper 55 kW 200...240 V,Variable speed drive ATV930 without braking chopper 75 kW 200...240 V
Thermal losses 400 W
Minimum resistor value to associate 1.4 Ohm
Protection type Integrated thermal protection by thermal probe

Complementary

Maximum braking power 80 kW
Permanent braking power 60 kW (at constant power and at engage threshold)
Load factor 0.05 for 150 kW at constant power and at engage threshold,0.15 for 120 kW at constant power and at engage threshold,0.5 for 95 kW at constant power and at engage threshold,1 for 75 kW at constant power and at engage threshold
Activation threshold 395 V DC +/- 1 %
maximum DC bus voltage 450 V
Width 216 mm
Height 658 mm
Depth 303 mm
net weight 15.5 kg
Volume of cooling air 166 m3/h
Operating position Vertical +/- 10 degree
Mechanical robustness Vibrations class 3M4 conforming to IEC 60721-3-3

Environment

IP degree of protection IP20,IP21 (on top)
Operating altitude <= 1000 m without derating,1000...4000 m with current derating 1 % per 100 m
Ambient air temperature for operation -10…50 °C
Ambient air temperature for storage -40…70 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 26.4 cm
Package 1 Width 42.0 cm
Package 1 Length 62.0 cm
Package 1 Weight 21.5 kg

Contractual warranty

Warranty 18 months
