VW3A7748

VW3A7748 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for VW3A7748 Schneider Electric

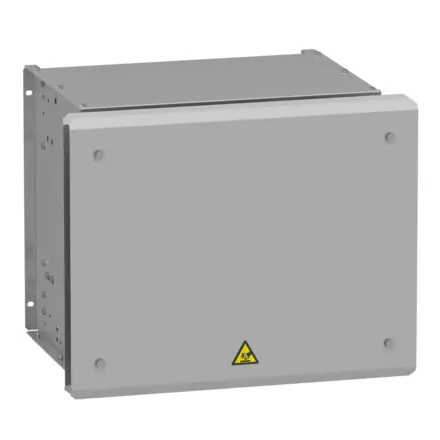

VW3A7748 Schneider Electric - braking resistor - 1.4 ohms - 5.1 kW - IP23

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,240.25 Exc. VAT
£1,488.30 Inc. VAT

Main

Range compatibility Altivar Process ATV900
product or component type Braking resistor
Ohmic value 1.4 Ohm
[Ue] rated operational voltage 24 V DC,250 V AC

Complementary

Product compatibility Variable speed drive ATV930 wall mount 55 kW 200...240 V medium cycle,Variable speed drive ATV930 wall mount 75 kW 200...240 V medium cycle,Variable speed drive ATV930 wall mount 220 kW 380...480 V light cycle,Variable speed drive ATV930 wall mount 250 kW 380...480 V light cycle
Duty cycle Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle ,Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
Average power available 5.1 kW at 50 °C
Electrical connection terminal, connection capacity: <= 2.5 mm² / AWG 12 for temperature control switch,M12 bar wire for drive
Protection type Thermal protection via drive or temperature control switch at 120 °C
Width 540 mm
Height 485 mm
Depth 650 mm
net weight 29 kg

Environment

IP degree of protection IP23
Ambient air temperature for storage -25…70 °C
Ambient air temperature for operation 0…50 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 48.500 cm
Package 1 Width 54.000 cm
Package 1 Length 65.000 cm
Package 1 Weight 40.000 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
