Description for VW3A7754 Schneider Electric

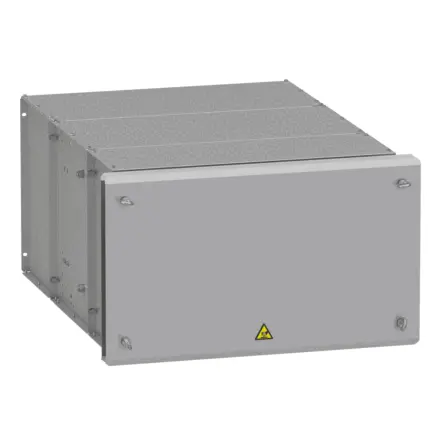

VW3A7754 Schneider Electric - braking resistor - 10 ohms - 19 kW - IP23

Extended Description for VW3A7754 Schneider Electric

VW3A7754 Schneider Electric - This braking resistor is an option for variable speed drives of Altivar range.,It has an Ohmic value of 10Ohms at 20°C.,This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque.,Its protection index is IP23.,It weighs 67kg.,This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£2,049.41 Exc. VAT
£2,459.29 Inc. VAT

Main

Range compatibility Altivar Machine ATV340,Altivar Process ATV900
product or component type Braking resistor
Ohmic value 10 Ohm
[Ue] rated operational voltage 24 V DC,250 V AC

Complementary

Product compatibility Variable speed drive ATV930 wall mount 37 kW 380...480 V severe cycle,Variable speed drive ATV930 wall mount 45 kW 380...480 V severe cycle,Variable speed drive ATV930 wall mount 90 kW 380...480 V severe cycle,Variable speed drive ATV950 wall mount 37 kW 380...480 V severe cycle,Variable speed drive ATV950 wall mount 45 kW 380...480 V severe cycle,Variable speed drive ATV950 wall mount 90 kW 380...480 V severe cycle,Variable speed drive ATV340 30 kW 380...480 V severe cycle,Variable speed drive ATV340 37 kW 380...480 V severe cycle,Variable speed drive ATV340 75 kW 380...480 V severe cycle 2 per drive,Variable speed drive ATV930 45 kW 500...690 V severe cycle,Variable speed drive ATV930 55 kW 500...690 V severe cycle,Variable speed drive ATV930 60 hp 600 V severe cycle,Variable speed drive ATV930 75 hp 600 V severe cycle
Duty cycle Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle ,Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
Average power available 19 kW at 50 °C
Electrical connection terminal, connection capacity: <= 2.5 mm² / AWG 12 for temperature control switch,M12 bar wire for drive
Protection type Thermal protection via drive or temperature control switch at 120 °C
Width 540 mm
Height 1035 mm
Depth 860 mm
net weight 71 kg

Environment

IP degree of protection IP23
Ambient air temperature for storage -25…70 °C
Ambient air temperature for operation 0…50 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 80.0 cm
Package 1 Width 120.0 cm
Package 1 Length 152.0 cm
Package 1 Weight 94.5 kg

Logistical informations

Country of origin DE

Contractual warranty

Warranty 18 months
