Schneider Electric

VW3M3308

VW3M3308 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for VW3M3308 Schneider Electric

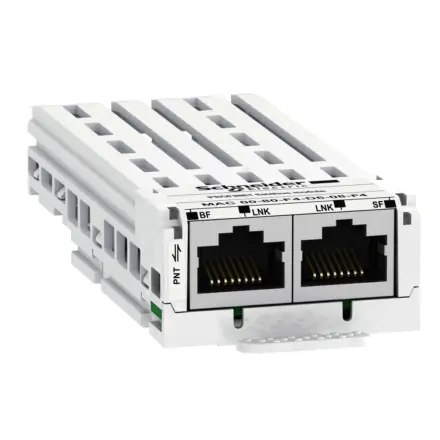

VW3M3308 Schneider Electric - PROFINET fieldbus module

Extended Description for VW3M3308 Schneider Electric

VW3M3308 Schneider Electric - This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW.,The ProfNet fieldbus module is communication accessory of servo drives.,It supports 100Mbits 100m transmission rate, 256 number of addresses with ProfNet communication port protocol.,It is furnished with 2 RJ45 connectors for electrical connection.,It weighs 0.45kg.,This product is compatible with Lexium 32M servo drive.,Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options.,Servo drives and servo motors from 0.15kW to 7kW for maximum performance.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£173.87 Exc. VAT
£208.65 Inc. VAT

Main

Range compatibility Lexium 32
accessory / separate part category Communication accessories
accessory / separate part type Card
product or component type Communication module
Product compatibility Lexium 32M
Accessory / separate part destination Servo drive

Complementary

Transmission rate 10 Mbits 100 m,100 Mbits 100 m
Number of addresses 256
communication port protocol PROFINET
Electrical connection 2 connectors RJ45
Local signalling 4 LEDs (green/red) for communication status
net weight 0.45 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.7 cm
Package 1 Width 13.0 cm
Package 1 Length 19.0 cm
Package 1 Weight 152.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 16
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.171 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

Environmental disclosure
