Schneider Electric

VZ408C-15BP01

VZ408C-15BP01 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for VZ408C-15BP01 Schneider Electric

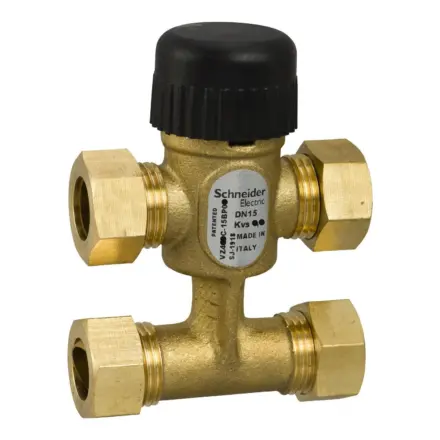

VZ408C-15BP01 Schneider Electric - Zone Valve, 15mm, 3-Way Bypass, Compression, Brass, 0.25kvs

Extended Description for VZ408C-15BP01 Schneider Electric

VZ408C-15BP01 Schneider Electric - The VZ48C is a small linear three-way with bypass zone valve used for the control of hot or chilled water in terminal units.,It is designed to be used with the MZ14 family of thermal actuators.,The valves utilise a double O-ring design on the plug to ensure a leak tight seal on both valve ports, this ensures no loss of energy leakage through the valve.,15mm Compression connection,DN15, Kvs: .25 m³/h,Pressure class PN16, stroke 2.5 mm, Normally closed (A-Ab).,It is recommended to fit a strainer upstream of the valve to increase reliability and to follow water treatment guidelines as detailed in VDI 235.,Valves should be installed in the return pipe to reduce exposure to media temperature extremes.
