Schneider Electric

XACB9212

XACB9212 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XACB9212 Schneider Electric

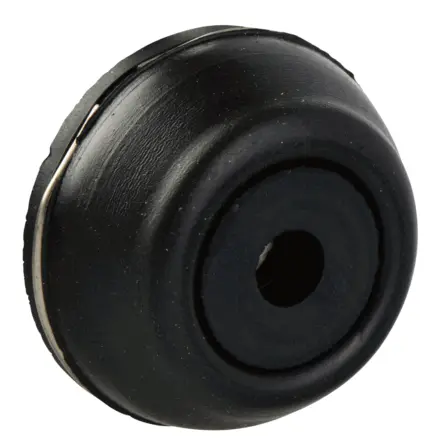

XACB9212 Schneider Electric - Head for push button, Harmony XAC, plastic, black, booted, operating travel 16mm, 25…+ 70 degree C

Extended Description for XACB9212 Schneider Electric

XACB9212 Schneider Electric - Head for push button, Harmony XAC, plastic, black, booted, operating travel 16mm, 25…+ 70 degree C

Free Delivery to UK Mainland on orders over £25

Manufacturer New

5 available
1 - 2 w.days
£8.23 Exc. VAT (In a Pack of 10)
£9.88 Inc. VAT

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£2.04 Exc. VAT
£2.45 Inc. VAT

Main

range of product Harmony XAC
product or component type Head for push-button
Component name XACB
marking Unmarked
Operator additional information Booted
Operating travel 16 mm
cap/operator or lens colour Black
Product compatibility XESD1281,XESD1191,XESD1181,XESD1291
Sale per indivisible quantity 10

Complementary

net weight 0.005 kg

Environment

Standards IEC 60947-5-1,CSA C22.2 No 14,IEC 60947-5-1
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…70 °C
Vibration resistance 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
Shock resistance 100 gn conforming to IEC 60068-2-27
Electrical shock protection class Class II conforming to IEC 61140
IP degree of protection IP65 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 14.0 cm
Package 1 Length 18.0 cm
Package 1 Weight 6.0 g
Unit Type of Package 2 BAG
Number of Units in Package 2 10
Package 2 Height 18.0 cm
Package 2 Width 3.0 cm
Package 2 Length 14.0 cm
Package 2 Weight 69.0 g
Unit Type of Package 3 S02
Number of Units in Package 3 200
Package 3 Height 15.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 1.706 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
