Schneider Electric

XAPG39203

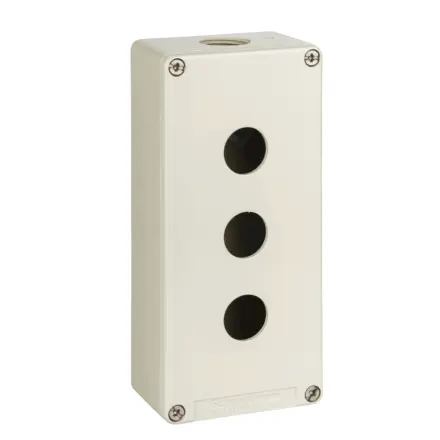

XAPG39203 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XAPG39203 Schneider Electric

XAPG39203 Schneider Electric - Empty enclosure, zinc alloy, grey RAL 7032, 3 cut-outs, Ã22 mm, 80x175x51.5 mm

Extended Description for XAPG39203 Schneider Electric

XAPG39203 Schneider Electric - This is part of the range Harmony XAP, XB2 SL metal enclosures for Harmony XB4.,This Harmony XAPG is a die-cast empty control station.,It has 3 cut-outs, 3 vertical openings, diameter 22mm for 3 functions.,Designed for industry, it offers operating simplicity, flexibility and robustness.,Its protection index is IP65.,Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.,It provides a zinc alloy grey (RAL 7032) enclosure. Its dimensions are 175mm height, 80mm wide, 51.5mm deep.,It is designed for machines builders (automotive, textile, wood) and services and infrastructures, energy distribution, building, airport.,It is compatible with the Harmony XB4 range of control and signaling units.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£48.54 Exc. VAT
£58.25 Inc. VAT

Main

range of product Harmony XAP
product or component type Die-cast empty control station
Device short name XAPG
Product destination For Ø 22 mm control and signalling units
Number of cut-out 3 cut-outs
Colour of base of enclosure Grey (RAL 7032)
Colour of cover Grey (RAL 7032)
Control station type Metal
Material Die cast zinc
Sale per indivisible quantity 1
IP degree of protection IP65 conforming to IEC 60529
Resistance to chemical agents Special treatment can be obtained on request

Complementary

Number of vertical rows 1
Number of horizontal rows 3
cut-out dimensions Ø 22 mm
Cable entry cable gland,1 x cable gland
thread type 3/4 NPT
CAD overall width 80 mm
CAD overall height 175 mm
CAD overall depth 51.5 mm
net weight 0.870 kg
compatibility code XAPG

Environment

Protective treatment TH
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…70 °C
Electrical shock protection class Class I conforming to IEC 60536,Class I conforming to NF C 20-030
IK degree of protection IK07 conforming to IEC 62262

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 12.000 cm
Package 1 Length 19.000 cm
Package 1 Weight 979.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 6
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.188 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD

Environmental disclosure
