Schneider Electric

XARS8D18W

XARS8D18W Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XARS8D18W Schneider Electric

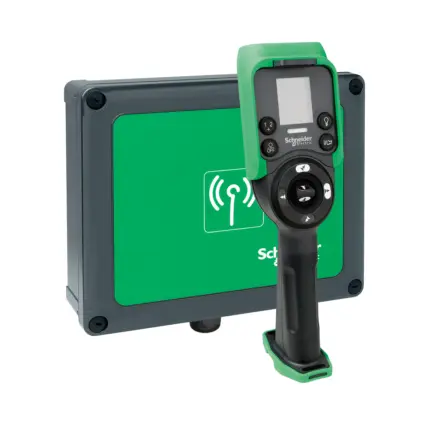

XARS8D18W Schneider Electric - Remote ZART8D + Base ZARB18W

Extended Description for XARS8D18W Schneider Electric

XARS8D18W Schneider Electric - This wireless control station emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy,It has motion function and limiter protection function.,Its schematic is clearly distinguishable thanks to clear colors,It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant, making it ideal for operation in harsh environments,The product is composed of a remote ZART8D and a base ZARB18W,High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,103.68 Exc. VAT
£1,324.42 Inc. VAT

Main

range of product Harmony eXLhoist
product or component type Control station
Device short name XARS
Control station type Wireless
Product specific application Hoisting applications,Material handling
Number of channels 50
Control station application Stop function: SIL 2 maximum (can reach PL d/category 3) conforming to IEC 62061,Stop function: SIL 2 maximum (can reach PL d/category 3) conforming to ISO 13849-1,Emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to IEC 62061,Emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to ISO 13849-1,Motion function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061,Motion function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1,Limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061,Limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1

Complementary

Kit composition Base station,Remote control
Operating distance 100 m in free air
Cable entry Cable gland
Communication network type Wireless: bluetooth low energy
Transmission frequency 2.4 GHz

Environment

Radio agreement RSS,SRRC,ANATEL,ARIB,FCC,ICASA
Relative humidity 0…95 % at -20…45 °C storage
Electromagnetic compatibility Resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2,Resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2,Resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3
Standards IEC 60204-1 safety,ISO 13849-1 safety,IEC 62061 safety,IEC 61508 safety,ISO 13850 safety,IEC 60204-32 hoisting applications,ETSI EN 301 489-1 radio,ETSI EN 301 489-3 radio,ETSI EN 301 489-17 radio,ETSI EN 300 440-2 radio,ETSI EN 300 328 radio,FCC part 15 radio,RSS GEN issue 3 radio,RSS 210 issue 8 radio,ARIB STD-T81 radio
Product certifications CE,UL,CSA,C-Tick,JIS,KC,EAC

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 19.5 cm
Package 1 Width 28.7 cm
Package 1 Length 31.0 cm
Package 1 Weight 2.541 kg
Unit Type of Package 2 S04
Number of Units in Package 2 2
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 5.897 kg
Unit Type of Package 3 P06
Number of Units in Package 3 8
Package 3 Height 75.0 cm
Package 3 Width 80.0 cm
Package 3 Length 60.0 cm
Package 3 Weight 33.828 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
