Schneider Electric

XARSK8L12W

XARSK8L12W Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XARSK8L12W Schneider Electric

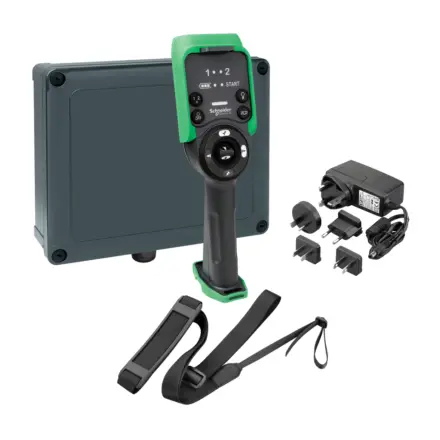

XARSK8L12W Schneider Electric - System-XARS8L12W + Charger + Shoulder belt + CABLE USB/RJ45 + Config Software

Extended Description for XARSK8L12W Schneider Electric

XARSK8L12W Schneider Electric - This starting kit is part of the range wireless remote control system Harmony eXLhoist.,It comprises remote control system, accessories, USB/RJ45 cable and configuration software.,It is designed for hoisting or material handling applications.,Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,000.04 Exc. VAT
£1,200.05 Inc. VAT

Main

range of product Harmony eXLhoist
product or component type Control station
Device short name XARS
Control station type Wireless
Product specific application Material handling,Hoisting applications
Number of channels 50
Control station application Stop function: SIL 2 maximum (can reach PL d/category 3) conforming to IEC 62061,Stop function: SIL 2 maximum (can reach PL d/category 3) conforming to ISO 13849-1,Emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to IEC 62061,Emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to ISO 13849-1,Motion function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061,Motion function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1,Limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061,Limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1

Complementary

Kit composition Cable,Remote control,Shoulder belt,Base station,Configuration software
Operating distance 100 m in free air
Cable entry Cable gland
Communication network type Wireless: bluetooth low energy
Transmission frequency 2.4 GHz

Environment

Radio agreement SRRC,ICASA,FCC,ARIB,RSS,ANATEL
Relative humidity 0…95 % at -20…45 °C storage
Electromagnetic compatibility Resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2,Resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2,Resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3
Standards IEC 60204-1 safety,ISO 13849-1 safety,IEC 62061 safety,IEC 61508 safety,ISO 13850 safety,IEC 60204-32 hoisting applications,ETSI EN 301 489-1 radio,ETSI EN 301 489-3 radio,ETSI EN 301 489-17 radio,ETSI EN 300 440-2 radio,ETSI EN 300 328 radio,FCC part 15 radio,RSS GEN issue 3 radio,RSS 210 issue 8 radio,ARIB STD-T81 radio
Product certifications CE,UL,CSA,C-Tick,JIS,KC,EAC

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 20.000 cm
Package 1 Width 28.500 cm
Package 1 Length 30.700 cm
Package 1 Weight 3.029 kg
Unit Type of Package 2 S04
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 6.600 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Instruction sheet

Catalogue

CAD

Environmental disclosure
