Schneider Electric

XB4FG03

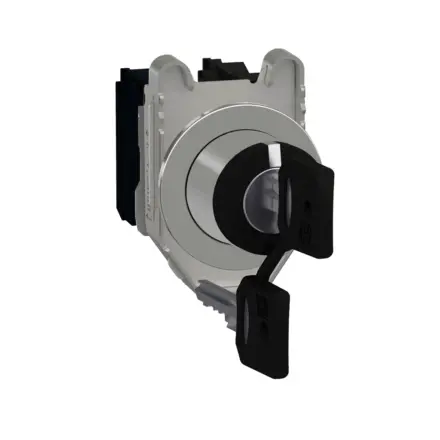

XB4FG03 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XB4FG03 Schneider Electric

XB4FG03 Schneider Electric - Selector switch, Harmony XB4, flush mounted sw à 30.5 key 455 3 pos stay put key release 2 NO

Extended Description for XB4FG03 Schneider Electric

XB4FG03 Schneider Electric - This flush mounted key switch is a part of the Harmony XB4 metallic range and is a complete product.,It has a mounting diameter of 30.5 mm.,Customized marking option through web customization tool is available in Schneider Electric website.,The flush mount design of this key switch addresses the market demands for ergonomic and aesthetics.,This black key switch is compatible with key number 455 and supports 3 positions ± 45 degree stay put.,The contact type is 2NO slow break and the connection terminal is screw clamp.,The shape of the head is round. The bezel is chromium plated and the fixing collar is zamak. The weight of this key switch is 127 grams, height is 47 mm, and width is 36.6 mm.,The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications.,With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals.,To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation.,The packaging includes 1 unit of this key switch.,It can be easily installed to a panel cut out with the help of a cross head screwdriver.,Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£25.04 Exc. VAT
£30.05 Inc. VAT

Main

range of product Harmony XB4
product or component type Selector switch
Device short name XB4F
Bezel material Chromium plated metal
Fixing collar material Zamak
Mounting diameter 30.5 mm
Sale per indivisible quantity 1
Head type Built-in-flush
Shape of signaling unit head Round
Type of operator stay put
Operator profile Black key switch
Operator position information 3 positions +/- 45°
Contacts type and composition 2 NO
Contact operation Slow-break
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1,Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Complementary

Height 47 mm
Width 36.6 mm
Depth 100 mm
Terminals description ISO n°1 (23-24)NO,(13-14)NO
net weight 0.127 kg
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Device mounting Built-in
Fixing center 40 x 50 mm (1...6 mm thick panel)
Fixing mode By screws
Type of keylock Key 455
Key withdrawal position Left and center
Contacts usage Standard contacts
Positive opening Without
Torque value 0.14 N.m NO changing electrical state
Mechanical durability 1000000 cycles
Tightening torque 0.8…1.2 N.m conforming to IEC 60947-1
Shape of screw head Cross compatible with Philips no 1 screwdriver,Cross compatible with pozidriv No 1 screwdriver,Slotted compatible with flat Ø 4 mm screwdriver,Slotted compatible with flat Ø 5.5 mm screwdriver
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
[Ie] rated operational current 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1,6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1,0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1,0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1,0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1,1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C,1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C,1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C,1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C,1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4,Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
Device presentation Complete product

Environment

Protective treatment TH
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -40…70 °C
Overvoltage category Class I conforming to IEC 60536
IP degree of protection IP66 conforming to IEC 60529,IP67 conforming to IEC 60529,IP69 conforming to IEC 60529,IP69K conforming to ISO 20653,Type 13 conforming to UL 50 E,Type 12 conforming to UL 50 E,Type 4 conforming to UL 50 E,Type 4X conforming to UL 50 E
IK degree of protection IK04 conforming to IEC 50102
Standards CSA C22.2 No 14,IEC 60947-5-1,IEC 60947-5-4,UL 508,IEC 60947-1,JIS C8201-5-1,CE,JIS C8201-1
Product certifications UL listed,CSA,CCC,EAC
Vibration resistance 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6,2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27,50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27,25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.33 cm
Package 1 Width 4.57 cm
Package 1 Length 12.95 cm
Package 1 Weight 0.19 kg

Contractual warranty

Warranty 18 months
