XB5AL734155

XB5AL734155 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XB5AL734155 Schneider Electric

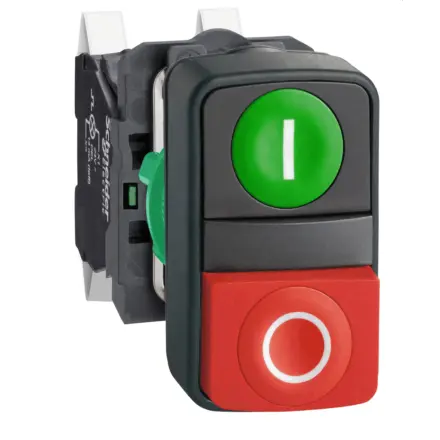

XB5AL734155 Schneider Electric - Harmony XB5, Double-headed push button, plastic, Ã22, 1 green flush marked I + 1 red projecting marked O, spring clamp terminal, 1 NO + 1 NC

Extended Description for XB5AL734155 Schneider Electric

XB5AL734155 Schneider Electric - This double-headed push-button provides a complete 2 button interface to your machines with a single panel cut-out,It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67 / IP69 / IP69K, making it ideal for operation in harsh environments,It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections,High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£14.59 Exc. VAT
£17.51 Inc. VAT

Main

range of product Harmony XB5
product or component type Double-headed push-button
Device short name XB5
Bezel material Dark grey plastic
Fixing collar material Plastic
Head type Standard
Mounting diameter 22.5 mm
Shape of signaling unit head Rectangular
Type of operator spring return
Operator profile 1 flush - 1 projecting push-buttons
Operators description Green ''I'' - red ''O''
Contacts type and composition 1 NO + 1 NC
Contact operation Slow-break
Connections - terminals Push-in, <= 2 x 1.5 mm² with wire end ferrule conforming to IEC 60947-1,Push-in, >= 1 x 0.34 mm² without wire end ferrule conforming to IEC 60947-1
Device presentation Complete product

Complementary

Height 50 mm
Width 30 mm
Depth 51 mm
Terminals description ISO n°1 (21-22)NC,(13-14)NO
net weight 0.045 kg
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Colour of marking White marking when green, red or black caps,Black marking when white caps
Operator profile Red projecting, O (white),Green flush, I (white)
Contacts usage Standard contacts
Positive opening With conforming to IEC 60947-5-1 appendix K
Operating travel 1.217 mm (NC changing electrical state),2.05 mm (NO changing electrical state),4.3 mm (total travel)
Operating force 2.25 N NC changing electrical state,2.45 N NO changing electrical state
Mechanical durability 10000000 cycles
Contacts material Silver alloy (Ag/Ni)
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage 300 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
[Ie] rated operational current 6 A at 120 V, AC-15, A300 conforming to IEC 60947-5-1,3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1,0.55 A at 125 V, DC-13, Q300 conforming to IEC 60947-5-1,0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1

Environment

Protective treatment TH
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -40…70 °C
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP66 conforming to IEC 60529,IP67,IP69,IP69K
NEMA degree of protection NEMA 13,NEMA 4X
IK degree of protection IK03 conforming to IEC 50102
Standards IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,UL 60947-1,UL 60947-5-1,UL 60947-5-5,UL 1059,UL 486E,CSA C22.2 No 60947-1,CSA C22.2 No 60947-5-1,CSA C22.2 No 158,CSA C22.2 No 65,IACS E10
Product certifications BV,LROS (Lloyds register of shipping),EAC,IECEE CB Scheme,CCC,UL,DNV-GL,CSA
Vibration resistance 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6,25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6
Shock resistance 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27,30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27,50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.200 cm
Package 1 Width 5.500 cm
Package 1 Length 9.000 cm
Package 1 Weight 53.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 12.500 cm
Package 2 Width 12.500 cm
Package 2 Length 18.500 cm
Package 2 Weight 614.000 g
Unit Type of Package 3 S01
Number of Units in Package 3 20
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 1.428 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
