Schneider Electric

XB5DTB23

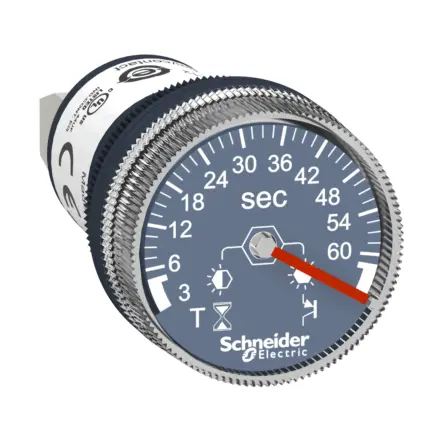

XB5DTB23 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XB5DTB23 Schneider Electric

XB5DTB23 Schneider Electric - Harmony XB5, Panel mounted timer monofunction, plastic, Ã22, time delay 3...60 s, 24 V DC

Extended Description for XB5DTB23 Schneider Electric

XB5DTB23 Schneider Electric - This Harmony XB5, monolithic analog timer can be set for timing intervals between 3 to 60 seconds and is supplied with a 24V DC input.,This analog timer provides visual timing of your processes.,It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections.,It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.,It provides highly visible timing of machine processes, ensuring accuracy and consistency of operation.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£34.38 Exc. VAT
£41.26 Inc. VAT

Main

range of product Harmony XB5
product or component type Timer
Sale per indivisible quantity 1

Complementary

Bezel material Plastic
Fixing collar material Plastic
Mounting diameter 22 mm
Panel Thickness 1…6 mm
Shape of signaling unit head Round
Time delay range 3...60 s
Time delay type A
Repeat accuracy +/- 0.5 %
Setting accuracy of time delay +/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Temperature drift +/- 0.05 %/°C
Voltage drift +/- 0.2 %/V
Protection type Reverse polarity protection,Overvoltage protection
Pollution degree 3 conforming to IEC 60664-1
Output type Open collector PNP
Temporary permissible current 10 A for 0.01 s
Minimum switching current 10 mA
Voltage drop in closed state 3 V
Nominal rating 200 mA at 20 °C( derating 1.5 mA per °C)
Residual current in open state 0.1 mA
Power consumption in W 1 W
Reset time 5 ms after time delay on de-energisation,7 ms during time delay on de-energisation
Local signalling LED green, flashing for timing in progress,LED, steady for no timing in progress and output relay energised
[Us] rated supply voltage 24 V DC
Supply voltage limits 16.8…31.2 V DC
Output short-circuit protection Yes
Connections - terminals Screw terminals 1 x 4 mm² conforming to IEC 60947-1,Screw terminals 1 x 2.5 mm² conforming to IEC 60947-1
IP degree of protection IP65 front: conforming to IEC 60529,IP20 back: conforming to IEC 60529
Ambient air temperature for operation -20…60 °C
Ambient air temperature for storage -20…80 °C
Tightening torque 0.5 N.m
Dielectric strength 1500 V conforming to IEC 61812-1
[Ui] rated insulation voltage 50 V conforming to IEC 60947-1,50 V conforming to IEC 60664-1
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1,4 kV conforming to IEC 60664-1
Surge withstand 1 kV, level 2 conforming to IEC 61000-4-5
Overvoltage category Class 3 conforming to IEC 60536,Class 3 conforming to IEC 60664-1
Vibration resistance 0.15 mm (f= 10…60 Hz) conforming to IEC 60068-2-6,2 gn (f= 60…150 Hz) conforming to IEC 60068-2-6
Shock resistance +/- 15 gn for 11 ms (6 shocks on each axis) conforming to IEC 60068-2-27
Resistance to fast transients 2 kV class level 3 conforming to IEC 61000-4-4
Electromagnetic compatibility Electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2,Electromagnetic emission class B conforming to IEC 55011
Resistance to electromagnetic fields 10 V/m 80 MHz...1 GHz level 3 conforming to IEC 61000-4-3,3 V/m 1.4...2 GHz level 2 conforming to IEC 61000-4-3,1 V/m 2...2.7 GHz level 1 conforming to IEC 61000-4-3
Immunity to radioelectric fields 10 V level 3 conforming to IEC 61000-4-6
Disturbance radiated/conducted Class B conforming to EN 50022
Standards IEC 61812-1,UL 508
Product certifications UL listed,CE
Device presentation Monolithic product
Height 62 mm
Diameter 29 mm
net weight 0.027 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.200 cm
Package 1 Width 3.200 cm
Package 1 Length 7.500 cm
Package 1 Weight 27.000 g
Unit Type of Package 2 S01
Number of Units in Package 2 72
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.195 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
