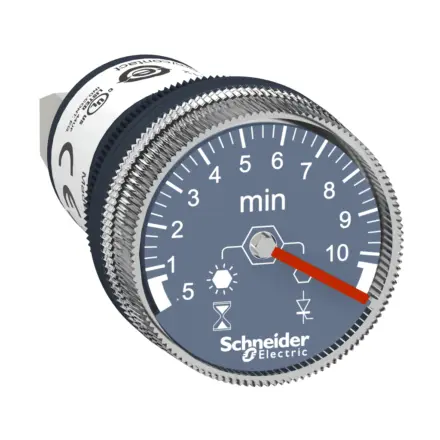

XB5DTGM4 Schneider Electric - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 0.5...10min, 100…240V AC DC

Extended Description for XB5DTGM4 Schneider Electric

XB5DTGM4 Schneider Electric - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 0.5...10min, 100…240V AC DC

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£41.25 Exc. VAT
£49.50 Inc. VAT

Main

range of product Harmony XB5
product or component type Timer
Sale per indivisible quantity 1

Complementary

Bezel material Plastic
Fixing collar material Plastic
Mounting diameter 22 mm
Panel Thickness 1…6 mm
Shape of signaling unit head Round
Time delay range 0.5...10 min
Time delay type A
Repeat accuracy +/- 0.5 %
Setting accuracy of time delay +/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Temperature drift +/- 0.05 %/°C
Voltage drift +/- 0.2 %/V
Protection type Overvoltage protection
Pollution degree 3 conforming to IEC 60664-1
Output type Thyristor
Temporary permissible current 10 A for 0.01 s
Minimum switching current 10 mA
Voltage drop in closed state 5 V
Residual current in open state 5 mA
Power consumption in W 1 W
maximum power consumption in VA 1.5 VA
Reset time 30 ms after time delay on de-energisation,60 ms during time delay on de-energisation
Local signalling LED green, steady for timing in progress,LED, off for no timing in progress and output relay energised
[Us] rated supply voltage 110...230 V AC/DC
Supply voltage limits 93.5…253 V AC/DC
Output short-circuit protection No
Connections - terminals Screw terminals 1 x 4 mm² conforming to IEC 60947-1,Screw terminals 1 x 2.5 mm² conforming to IEC 60947-1
IP degree of protection IP65 front: conforming to IEC 60529,IP20 back: conforming to IEC 60529
Ambient air temperature for operation -20…60 °C
Ambient air temperature for storage -20…80 °C
Tightening torque 0.5 N.m
Dielectric strength 1500 V conforming to IEC 61812-1
[Ui] rated insulation voltage 250 V conforming to IEC 60947-1,250 V conforming to IEC 60664-1
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1,4 kV conforming to IEC 60664-1
Surge withstand 2 kV, level 3 conforming to IEC 61000-4-5
Overvoltage category Class 3 conforming to IEC 60536,Class 3 conforming to IEC 60664-1
Vibration resistance 0.15 mm (f= 10…60 Hz) conforming to IEC 60068-2-6,2 gn (f= 60…150 Hz) conforming to IEC 60068-2-6
Shock resistance +/- 15 gn for 11 ms (6 shocks on each axis) conforming to IEC 60068-2-27
Resistance to fast transients 2 kV class level 3 conforming to IEC 61000-4-4
Electromagnetic compatibility Electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2,Electromagnetic emission class B conforming to IEC 55011
Resistance to electromagnetic fields 10 V/m 80 MHz...1 GHz level 3 conforming to IEC 61000-4-3,3 V/m 1.4...2 GHz level 2 conforming to IEC 61000-4-3,1 V/m 2...2.7 GHz level 1 conforming to IEC 61000-4-3
Immunity to radioelectric fields 10 V level 3 conforming to IEC 61000-4-6
Disturbance radiated/conducted Class B conforming to EN 50022
Standards UL 508,IEC 61812-1
Product certifications UL listed,CE
Device presentation Monolithic product
Height 62 mm
Diameter 29 mm
net weight 0.027 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.2 cm
Package 1 Width 3.2 cm
Package 1 Length 7.5 cm
Package 1 Weight 30.0 g
Unit Type of Package 2 S01
Number of Units in Package 2 24
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 916.0 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
