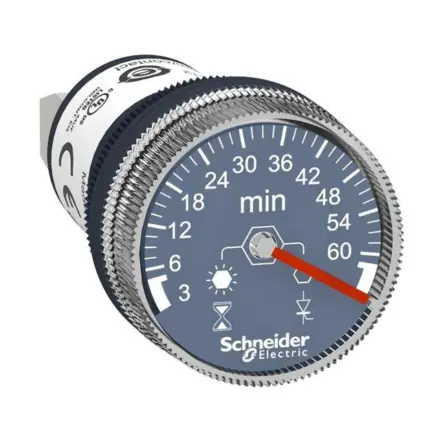

XB5DTGM5 Schneider Electric - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3...60min, 100…240V AC DC

Extended Description for XB5DTGM5 Schneider Electric

XB5DTGM5 Schneider Electric - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3...60min, 100…240V AC DC

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£41.25 Exc. VAT
£49.50 Inc. VAT

Complementary

Pollution Degree 3 IEC 60664-1
[Ui] Rated Insulation Voltage 250 V EN 60947-1 || 250 V IEC 60664-1
Resistance To Fast Transients 2 kV level 3 IEC 61000-4-4
Connections - Terminals screw terminals 1 x 4 mm² EN/IEC 60947-1 || screw terminals 1 x 2.5 mm² EN/IEC 60947-1
Bezel Material plastic
Minimum Switching Current 10 mA
Overvoltage Category class 3 IEC 60536 || class 3 IEC 60664-1
Diameter 29 mm
Thickness 1-6 mm
Repeat Accuracy +/- 0.5 %
Net Weight 0.027 kg
Ambient Air Temperature For Storage -20-80 °C
Local Signalling LED green, steady timing in progress || LED, off no timing in progress and output relay energised
[Us] Rated Supply Voltage 110...230 V AC/DC
Disturbance Radiated/Conducted class B EN 50022
Temperature Drift +/- 0.05 %/°C
Shape Of Signaling Unit Head round
Power Consumption In Va 1.5 VA
Fixing Collar Material plastic
Shock Resistance +/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27
Maximum Residual Current 5 mA
Time Delay Type A
Surge Withstand 2 kV, level 3 IEC 61000-4-5
Temporary Permissible Current 10 A 0.01 s
Device Presentation monolithic product
Power Consumption In W 1 W
Vibration Resistance 0.15 mm 10-60 Hz)IEC 60068-2-6 || 2 gn 60-150 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation -20-60 °C
Resistance To Electromagnetic Fields 10 V/m 80 MHz...1 GHz level 3 IEC 61000-4-3 || 3 V/m 1.4...2 GHz level 2 IEC 61000-4-3 || 1 V/m 2...2.7 GHz level 1 IEC 61000-4-3
Maximum Voltage Drop 5 V
Protection Type overvoltage protection
Setting Accuracy Of Time Delay +/- 10 % of full scale 25 °C EN/IEC 61812-1
Dielectric Strength 1500 V EN/IEC 61812-1
Electromagnetic Compatibility electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2 || electromagnetic emission class B conforming to IEC 55011
Output Type thyristor
Output Short-Circuit Protection no
Mounting Diameter 22 mm
[Uimp] Rated Impulse Withstand Voltage 4 kV EN 60947-1 || 4 kV IEC 60664-1
Product Certifications CE || UL Listed
Immunity To Radioelectric Fields 10 V level 3 EN/IEC 61000-4-6
Height 62 mm
Voltage Drift +/- 0.2 %/V
Supply Voltage Limits 93.5-253 V AC/DC
Standards UL 508 || EN/IEC 61812-1
Time Delay Range 3...60 min
Reset Time 30 ms after time delay on de-energisation || 60 ms during time delay on de-energisation
Ip Degree Of Protection front IP65 IEC 60529 || back IP20 IEC 60529
Tightening Torque 0.5 N.m

Offer Sustainability

Reach Regulation Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental Disclosure ENVPEP1710010EN
Rohs Exemption Information Yes
Circularity Profile ENVEOLI1710010EN
Mercury Free Yes
China Rohs Regulation X
