Schneider Electric

XB6AV5GB

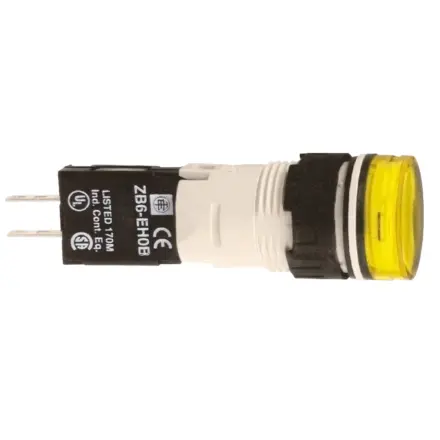

XB6AV5GB Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XB6AV5GB Schneider Electric

XB6AV5GB Schneider Electric - Complete pilot light, Harmony XB6, round yellow, plastic, 16mm, integral LED 48...120V

Extended Description for XB6AV5GB Schneider Electric

XB6AV5GB Schneider Electric - Schneider Electric, Harmony XB6, Panel Mount Yellow LED Pilot Light, 16mm Cutout, IP65, Round, 48 → 120V ac/dc

Free Delivery to UK Mainland on orders over £25

Complementary

Terminals Description Iso N°1 (X1-X2)PL
Operating Position any position
Signalling Type steady
Surge Withstand 1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Connections - Terminals Faston connectors 2.8 x 0.5 mm
[Ui] Rated Insulation Voltage 250 V 2)IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage 4 kV IEC 60947-1
Height 18 mm
Width 18 mm
Net Weight 0.015 kg
Supply Voltage Limits 6-30 V AC/DC
Depth 57 mm
Current Consumption 15 mA

Environment

Electrical Shock Protection Class class II IEC 61140
Standards IEC 60947-5-1 || IEC 60947-5-5 || IEC 60947-1 || JIS C 852 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3
Ambient Air Temperature For Storage -40-70 °C
Resistance To Fast Transients 2 kV IEC 61000-4-4
Ip Degree Of Protection IP65 IEC 60529
Electromagnetic Emission class B IEC 55011
Protective Treatment TC
Ambient Air Temperature For Operation -25-70 °C
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance To Electrostatic Discharge 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Product Certifications UL || GOST || CCC || CSA
Nema Degree Of Protection NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Vibration Resistance +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Specifications

[Us] Rated Supply Voltage 48...120 V AC
Range Of Product Harmony XB6
Bezel Material plastic
Light Block Supply direct
Light Source LED
Cap/Operator Or Lens Colour yellow
Shape Of Signaling Unit Head round
Product Or Component Type complete pilot light
Device Short Name XB6
Sale Per Indivisible Quantity 1
Mounting Diameter 16 mm
Bulb Base integral LED

Offer Sustainability

California Proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury Free Yes
Rohs Exemption Information Yes
Reach Regulation Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation X

Contractual warranty

Warranty 18 months
