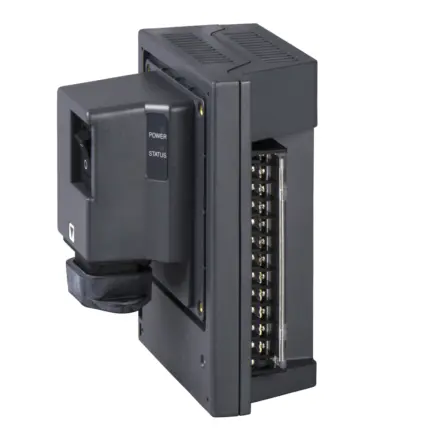

XBTZGJBOX Schneider Electric - junction box for advanced hand-held terminal

Extended Description for XBTZGJBOX Schneider Electric

XBTZGJBOX Schneider Electric - This Magelis XBTZ is a junction box for XBTGH touchscreen advanced hand-held panel.,It enables 24V dc power supply to XBTGH terminal and connection of various safety inputs/outputs.,It also enables connection on multiprotocol serial link (9-way SUB-D) or Ethernet TCP/IP (RJ45).,It can be mounted on 35 mm symmetrical DIN rail.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£420.16 Exc. VAT
£504.19 Inc. VAT

Main

range of product Magelis XBTGH
product or component type Junction box
Product specific application For XBTGH advanced hand-held panel

Complementary

[Us] rated supply voltage 24 V DC
Supply voltage limits 19.2…28.8 V
Inrush current 30 A
Power consumption in W 6.3 W
Electrical connection 1 connector 24-pin connector hand-held panel,1 connector RJ45 Ethernet TCP/IP,1 male connector SUB-D 9 RS232C/RS422/RS485 <= 115.2 kbits/s COM1 serial link,Screw terminal block 24 inputs/outputs
Port Ethernet 10BASE-T/100BASE-TX
Enclosure material PPT
Fixing mode By 4 M4 screws, mounting on 1.5 to 10 mm thick panel,Clip-on, mounting on 35 mm symmetrical DIN rail
marking CE

Environment

Immunity to microbreaks 10 ms
Standards FCC Class A,EN 61131-2,IEC 61000-6-2,UL 508
Product certifications cULus,C-Tick
Ambient air temperature for operation 0…50 °C
Ambient air temperature for storage -20…60 °C
Operating altitude <= 2000 m
IP degree of protection IP20 (rear panel),IP65 (front panel)
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance 1 gn (f = 9…150 Hz),3.5 mm (f = 5…9 Hz)
Relative humidity 0…90 % without condensation or dripping water
Resistance to electrostatic discharge 6 kV conforming to IEC 61000-4-2 level 3
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Resistance to fast transients 2 kV conforming to IEC 61000-4-4 level 3

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 17.000 cm
Package 1 Width 22.500 cm
Package 1 Length 27.000 cm
Package 1 Weight 1.184 kg
Unit Type of Package 2 S03
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.900 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

CAD
