XESD2241

XESD2241 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XESD2241 Schneider Electric

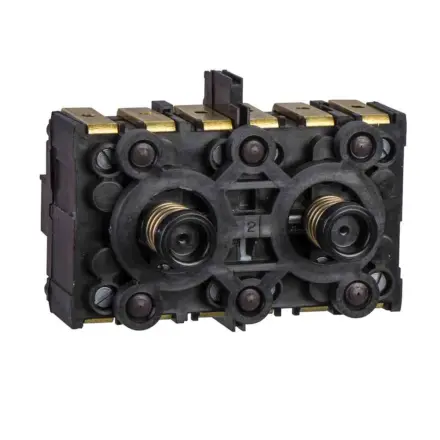

XESD2241 Schneider Electric - spring return contact block - 3 NO + 1 NO - front mounting, 40 mm centres

Extended Description for XESD2241 Schneider Electric

XESD2241 Schneider Electric - This Harmony XESD2241 is a spring return contact block 3 NO + 1 NO front mounting, 40mm centres.,It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£71.35 Exc. VAT
£85.63 Inc. VAT

Main

range of product Harmony XAC
product or component type Contact block
Component name XESD
electrical circuit type Power circuit
Contact block application Single speed
Contact block type Double
Type of operator 2 spring return
Product compatibility XACB
Mechanical interlocking With mechanical interlocking
Contacts type and composition 3 NO + 1 NO
Poles description 3-pole
Mounting of block Front mounting
Contact operation Snap action,Simultaneous

Complementary

Connections - terminals Screw clamp terminals, 1 x 2.5 mm² with or without cable end,Screw clamp terminals, 2 x 1.5 mm² with or without cable end
Horizontal fixing centres 40 mm
Mechanical durability 1000000 cycles
[Ithe] conventional enclosed thermal current 20 A
[Ui] rated insulation voltage 300 V conforming to CSA
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Operating force 32 N
Short-circuit protection 12 A fuse protection by cartridge fuse type aM
Rated operational power in W 3000 W AC-3 at 240 V,3000 W AC-4 at 400 V
Rated power in hp 3 hp at 240 V
Electrical durability 1000000 cycles AC-3, 3000 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A,1000000 cycles AC-4, 3000 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A,700000 cycles AC-3, 3000 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A,700000 cycles AC-4, 3000 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
Terminals description ISO n°1 B,(33-34)NO,(43-44)NO,(23-24)NO,(13-14)NO
Terminals description ISO n°2 (63-64)NO,(44-84)NO,(53-54)NO,(73-74)NO,B
Terminal identifier (13-14)NO,(11-12)NC
net weight 0.21 kg

Environment

Standards IEC 60947-3,CSA C22.2 No 14,EN 60947-3
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…70 °C
Vibration resistance 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
Shock resistance 100 gn conforming to IEC 60068-2-27
Electrical shock protection class Class II conforming to IEC 61140

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.300 cm
Package 1 Width 7.400 cm
Package 1 Length 9.500 cm
Package 1 Weight 272.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.424 kg

Contractual warranty

Warranty 18 months
