Schneider Electric

XKBZ962

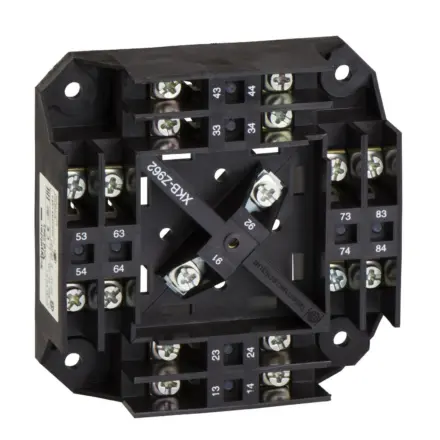

XKBZ962 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XKBZ962 Schneider Electric

XKBZ962 Schneider Electric - contacts block with simple handle - compatible with XKBZ913 XKBZ914

Extended Description for XKBZ962 Schneider Electric

XKBZ962 Schneider Electric - This XKBZ962 is a contacts block for use with simple handle.,It is part of the range Harmony XK joystick controllers and controller stations.,It is compatible with joystick controllers XKBZ913 and XKBZ914.

Free Delivery to UK Mainland on orders over £25

Main

product or component type Controllers separate parts
accessory / separate part category Control accessory
Product specific application Light hoisting applications
Product compatibility XKBZ914,XKBZ913
accessory / separate part type Contacts block
Accessory / separate part specific characteristic For use with simple handle,For use with zero (center) position interlocking handle

Complementary

Contact block per direction [control circuit] 4 per movement,1 zero (center) position
Electrical connection Screw clamp terminal, clamping capacity: 1 x 0.5...1 x 1.5 mm²,Screw clamp terminal, clamping capacity: 1 x 0.5...1 x 2.5 mm²
Enclosure/cubicle description Monobloc
Contacts type and composition 1 NC,8 NO
Contact operation Slow-break,Double-break
[Ith] conventional free air thermal current 10 A conforming to IEC 337-1,10 A conforming to NF C 63-140,10 A conforming to VDE 0660,10 A conforming to CSA C22.2 No 14
[Ui] rated insulation voltage 500 V AC/DC conforming to IEC 158-1,500 V AC/DC conforming to NF C 20-040,500 V AC/DC conforming to VDE 0110
Maximum resistance across terminals 25 mOhm at 1 A conforming to NF C 93-050
Positive opening With
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 337-1B,10 A cartridge fuse type gG conforming to VDE 0660 part 2
Electrical durability 1000000 cycles DC inductive load at 120 V, power broken = 75 conforming to IEC 337-1 DC-11, operating rate <60 cyc/mn 0.5,1000000 cycles DC inductive load at 24 V, power broken = 90 conforming to IEC 337-1 DC-11, operating rate <60 cyc/mn 0.5,1000000 cycles DC inductive load at 48 V, power broken = 90 conforming to IEC 337-1 DC-11, operating rate <60 cyc/mn 0.5
net weight 0.185 kg

Environment

Standards CENELEC EN 50013

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 9.2 cm
Package 1 Length 9.2 cm
Package 1 Weight 171.9 g
Unit Type of Package 2 S02
Number of Units in Package 2 20
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.823 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet
