XPSTSW5142P

XPSTSW5142P Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XPSTSW5142P Schneider Electric

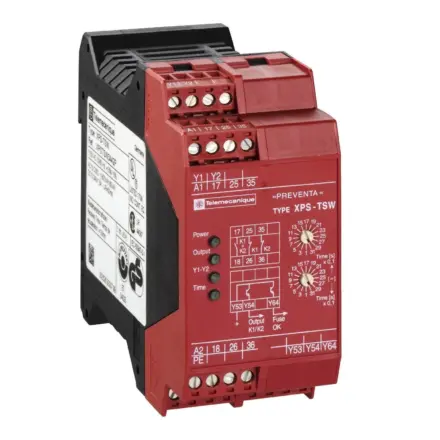

XPSTSW5142P Schneider Electric - module XPSTS - safety switchover contact - 24 V AC DC

Extended Description for XPSTSW5142P Schneider Electric

XPSTSW5142P Schneider Electric - This XPSTSW safety module for applications with safety switch-over contact.,It meets the requirements of PL c/Category 2 conforming to EN/ISO 13849-1.and SILCL1 conforming to EN/IEC 61508 and EN/IEC 62061.,Used in conjunction with XU2S single-beam photo-electric sensors (periodically tested), it establishes a category 2 light curtain conforming to IEC/EN 61496 parts 1 and 2.,24V AC/DC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time.,It has removable terminals for easier and better control wires tightening, thus improving installation reliability.,It provides additional solid-state output for communication with PLCs about safety status of your process.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£293.28 Exc. VAT
£351.94 Inc. VAT

Main

range of product Preventa Safety automation
product or component type Preventa safety time delay module
Safety module name XPSTSW
Safety module application For application with safety switchover contact
Function of module Monitoring safety time delays
Safety level Can reach PL d/category 3 conforming to EN/ISO 13849-1,Can reach SILCL 2 conforming to EN/IEC 62061
Safety reliability data MTTFd = 126 years conforming to EN/ISO 13849-1,DC = 60...90 % conforming to EN/ISO 13849-1,PFHd = 1.3E-7 1/h conforming to EN/IEC 62061
[Us] rated supply voltage 24 V AC,24 V DC - 15...15 %
Output type Relay, 1 NO + 2 NC circuit(s), volt-free
Number of additional circuits 2 solid state outputs

Complementary

Supply frequency 50/60 Hz
Maximum power consumption in VA 2.3 VA DC,4.3 VA AC
Input protection type Internal, electronic
Time delay 1...31 s configurable
Impulse duration 0.1...3.1 s
Breaking capacity 180 VA holding AC-15 C300 relay output,1800 VA inrush AC-15 C300 relay output
Breaking capacity 10 mA at 48 V,20 mA at 24 V for solid state output circuit,1.5 A at 24 V (DC-13) time constant: 50 ms for relay output
[Ith] conventional free air thermal current 6 A for relay output
Associated fuse rating 4 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200,6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Minimum output current 10 mA for relay output
Minimum output voltage 17 V for relay output
[Ui] rated insulation voltage 300 V (pollution degree 2) conforming to IEC 60947-5-1,300 V (pollution degree 2) conforming to DIN VDE 0110 part 1
[Uimp] rated impulse withstand voltage 4 kV overvoltage category III conforming to IEC 60947-5-1,4 kV overvoltage category III conforming to DIN VDE 0110 part 1
Local signalling 4 LEDs
Connections - terminals Captive screw clamp terminals, removable terminal block flexible cable: 0.2...1.5 mm² without cable end, 2 wires,Captive screw clamp terminals, removable terminal block flexible cable: 0.2...2.5 mm² without cable end, 1 wire,Captive screw clamp terminals, removable terminal block flexible cable: 0.25...1 mm² with cable end, without bezel, 2 wires,Captive screw clamp terminals, removable terminal block flexible cable: 0.25...2.5 mm² with cable end, with bezel, 1 wire,Captive screw clamp terminals, removable terminal block flexible cable: 0.25...2.5 mm² with cable end, without bezel, 1 wire,Captive screw clamp terminals, removable terminal block flexible cable: 0.5...1.5 mm² with cable end, with double bezel, 2 wires,Captive screw clamp terminals, removable terminal block solid cable: 0.2...1 mm² without cable end, 2 wires,Captive screw clamp terminals, removable terminal block solid cable: 0.2...2.5 mm² without cable end, 1 wire
mounting support 35 mm symmetrical DIN rail
Depth 114 mm
Height 99 mm
Width 45 mm
net weight 0.25 kg

Environment

Standards EN/IEC 60204-1,EN/IEC 60947-5-1
Product certifications UL,TÜV,CSA
IP degree of protection IP20 (terminals) conforming to EN/IEC 60529,IP40 (enclosure) conforming to EN/IEC 60529
Ambient air temperature for operation -10…55 °C
Ambient air temperature for storage -25…85 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.2 cm
Package 1 Width 10.7 cm
Package 1 Length 12.5 cm
Package 1 Weight 288.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 12
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.945 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue
