Schneider Electric

XVBC9B

XVBC9B Schneider Electric

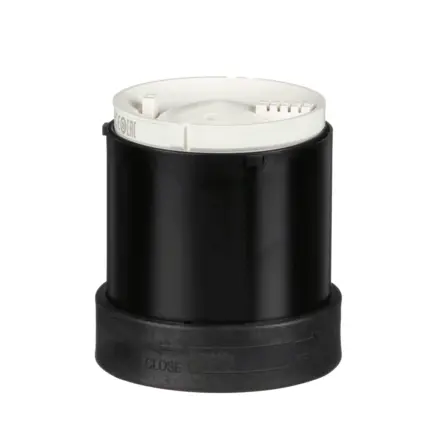

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XVBC9B Schneider Electric

XVBC9B Schneider Electric - Audible unit for modular tower lights, plastic, Ã70, buzzer, continuous or intermitten tone,70... 90 dB, 12...48 V AC/DC

Extended Description for XVBC9B Schneider Electric

XVBC9B Schneider Electric - This Harmony XVB audible buzzer unit is supplied with 12V to 48V AC/DC.,This indicating bank buzzer is an accessory designed as an audible and signalling unit for custom assembly.,It has a continuous or intermittent signal and its sound acoustic level is adjustable.,It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.,90 dB loud buzzer allows for clear alerting on critical machine statuses even from long distance.,It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).

Free Delivery to UK Mainland on orders over £25

Manufacturer New

2 available
1 - 2 w.days
£106.33 Exc. VAT
£127.60 Inc. VAT

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£39.14 Exc. VAT
£46.97 Inc. VAT

Main

range of product Harmony XVB Universal
product or component type Indicator bank
Beacon or indicator bank unit type Audible unit
Mounting diameter 70 mm
Component name XVBC
Noise level 70…90 dB at 1 m
[Us] rated supply voltage 12...48 V AC/DC

Complementary

Signalling type Continuous or intermittent buzzer
Assembly style Customer assembly, up to 5 units
Connections - terminals Screw clamp terminals, <= 1 x 1.5 mm² with cable end
[Ui] rated insulation voltage 250 V conforming to IEC 60947-1
Nominal voltage limit 0.85...1.1 Un conforming to IEC 60947-5-1
current consumption < 15 mA
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Fundamental frequency 2.8 kHz
CAD overall width 70 mm
CAD overall height 63 mm
CAD overall depth 70 mm
net weight 0.17 kg

Environment

Product certifications CCC,EAC,CSA C22-2 No 14,UL 508
Standards IEC 60947-5-1
Protective treatment TC
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…50 °C
Electrical shock protection class Class I on support tube conforming to IEC 61140,Class II on base unit conforming to IEC 61140
IP degree of protection IP65 on fixing base XVBZ0. conforming to IEC 60529,IP66 on base unit conforming to IEC 60529
NEMA degree of protection Type 4X conforming to UL (indoor)

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.800 cm
Package 1 Width 8.000 cm
Package 1 Length 9.600 cm
Package 1 Weight 166.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 36
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.580 kg
Unit Type of Package 3 P06
Number of Units in Package 3 288
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 60.284 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
