Schneider Electric

XVGU3SHAV

XVGU3SHAV Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XVGU3SHAV Schneider Electric

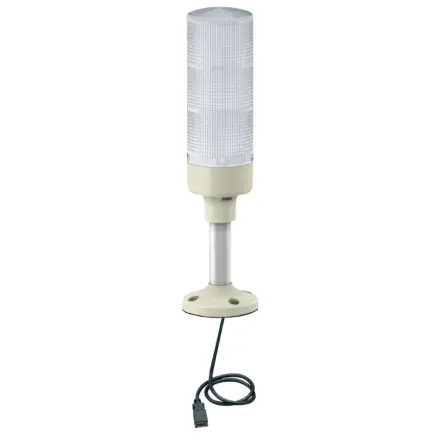

XVGU3SHAV Schneider Electric - Multi-color USB Programmable tower lights -60mm- steady/flashing LED-buzzer

Extended Description for XVGU3SHAV Schneider Electric

XVGU3SHAV Schneider Electric - This XVGU multi-color USB programmable tower light has 3 tiers, whose color and flashing scheme can be independantly configured within the HMI application.,It is mounted on an aluminium pole.,It is designed to connect directly with Magelis HMI using a USB connection and clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors.,It offers configurable color combinations, flashing patterns and buzzer sounds.,Included 82dB loud buzzer for alerting on critical machine statuses.,Adjustable flashing schemes to allow for more advanced alerting to workfloor staff around the machine.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£73.21 Exc. VAT
£87.85 Inc. VAT

Main

range of product Harmony XVGU
product or component type USB configurable monolithic tower light
Beacon or indicator bank unit type 3 illuminated units
Sound signalling Buzzer
Mounting diameter 60 mm
Component name XVGU
Light source LED steady or flashing multi-colour
Indicator bank base type Base with integrated buzzer
Noise level 85 dB (2 tone buzzer) at 1 m

Complementary

Material PC: globe
Device mounting Tube mounting with fixing plate
Light block color Clear/clear/clear
[Us] rated supply voltage 5 V DC
Connector type USB type A female
current consumption 400 mA
Sound frequency 3800 Hz,2700 Hz
Power consumption in W 2 W
Flashing frequency 2 Hz with flashing LED unit,1 Hz with flashing LED unit
Product compatibility Vijeo Designer 4.6 indoor use only,HMIGTO,XBTGT....,XBTGK....,XBTGC1.,XBTGC2.,XBTGH
net weight 0.3 kg

Environment

Standards IEC 61000-6-2,IEC 61000-6-4
Product certifications GOST,CE,UL 508,cUL,RCM
Ambient air temperature for storage -35…70 °C
Ambient air temperature for operation 0…55 °C
Electrical shock protection class Class I
IP degree of protection IP54

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.200 cm
Package 1 Width 13.000 cm
Package 1 Length 41.500 cm
Package 1 Weight 486.000 g
Unit Type of Package 2 S06
Number of Units in Package 2 30
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 26.320 kg

Contractual warranty

Warranty 18 months
