Schneider Electric

XVSV9MBN

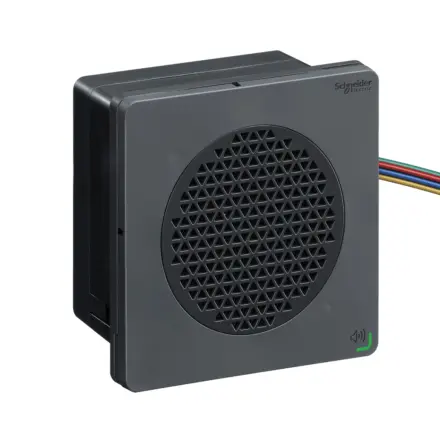

XVSV9MBN Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XVSV9MBN Schneider Electric

XVSV9MBN Schneider Electric - Editable voice alarms, black, mounting 96 mm DIN rail, NPN, 100...230V AC

Extended Description for XVSV9MBN Schneider Electric

XVSV9MBN Schneider Electric - This editable electronic alarm is an accessory designed as an audible and signaling unit for custom assembly.,It has a voice signal and its sound acoustic level is adjustable.,It has a DIN96 connector and is dust resistant, impact resistant, high pressure washer resistant, vibration resistant, corrosion resistant thanks to its IP69 / IP67, IP66 protection, making it ideal for operation in harsh environments.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£90.99 Exc. VAT
£109.19 Inc. VAT

Main

range of product Harmony XVS
product or component type Editable electronic alarm
Beacon or indicator bank unit type Sound unit
Device short name XVSV

Complementary

colour Dark grey
Input type Bit: 6 channel input,Binary: 63 channel input
Assembly style Ready assembled
Material PC (polycarbonate): body,PC (polycarbonate): back cover,TPE (thermoplastic elastomer): front panel,NBR (nitrile butadiene rubber)
marking CE
Overvoltage category Class II conforming to EN/IEC 61140
mounting support 96 mm DIN rail
[Us] rated supply voltage 100...230 V AC
[Ue] rated operational voltage 90...264 V AC
[Ui] rated insulation voltage 250 V
Inrush current 30 A
Associated fuse rating 1 A
[Uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60947-1
Power consumption in W 10 W
Current consumption 100 mA at 100 V AC
clamping connection capacity <= 1 x 1.5 mm²
device application Subway,Packaging,Printing
Mounting diameter 105 mm
Width 105 mm
Height 105 mm
Depth 50.1 mm
net weight 0.287 kg

Environment

Discrete output type NPN
Signalling type Adjustable vocal sound
Standards EN/IEC 60947-5-1
Protective treatment TC
Ambient air temperature for storage -20…60 °C
Ambient air temperature for operation 0…50 °C
Pollution degree 2
Relative humidity 35…85 % without condensation
Vibration resistance 7 gn
IP degree of protection Panel mounted: IP65 conforming to EN/IEC 60529,Wall mounted: IP20
Noise level 0…97 dB (stop or suppress) at 1 m

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.7 cm
Package 1 Width 13.0 cm
Package 1 Length 17.2 cm
Package 1 Weight 594.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 1
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.307 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
