Schneider Electric

XVUC48

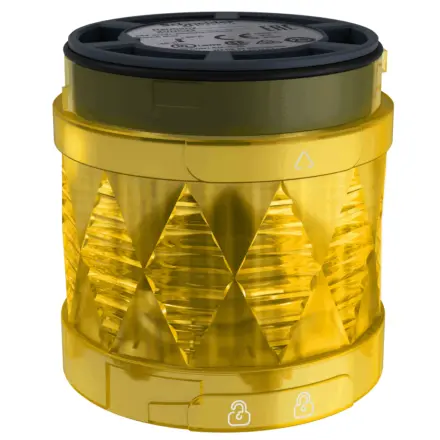

XVUC48 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for XVUC48 Schneider Electric

XVUC48 Schneider Electric - Harmony XVU, Illuminated LED unit for modular tower lights, yellow, Ã60, blinking, IP65, 24 V AC/DC

Extended Description for XVUC48 Schneider Electric

XVUC48 Schneider Electric - This Harmony XVU illuminated unit is supplied with 24V AC/DC and has a yellow LED with a high brightness flashing light.,This yellow illuminated unit is designed as an accessory to be connected with base and create complete tower light.,Its integral LED offers a flashing light pattern, allowing it to clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors.,It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.,Simple and modular design to allow for easy installation with base unit and make complete tower light.,Adjustable flashing schemes to allow for more advanced alerting to workfloor staff around the machine.,It complies with international standards and certifications (CSA, UL, RoHS, EAC, CE standards and IP65).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£29.38 Exc. VAT
£35.26 Inc. VAT

Main

range of product Harmony XVU
product or component type Modular tower light
Beacon or indicator bank unit type LED unit
Mounting diameter 60 mm
Component name XVU
Light source LED, yellow
device application Automotive,Packaging machine,Machine tools

Complementary

Signalling type Blinking
Assembly style Customer assembly, up to 5 units,Up to 4 units with buzzer
Material PC (polycarbonate) V-2 conforming to UL 94,PC (polycarbonate) V-0 conforming to UL 94
[Us] rated supply voltage 24 V AC/DC
Maximum power dissipation in W 1.2 W
Signalling type Blinking
Length 50 mm
net weight 0.064 kg

Environment

Product certifications CE,UL,CSA
Ambient air temperature for storage -40…70 °C
IP degree of protection IP65
Ambient air temperature for operation -25…50 °C
Vibration resistance 2 gn

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.0 cm
Package 1 Width 9.1 cm
Package 1 Length 13.3 cm
Package 1 Weight 143.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 24
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.034 kg
Unit Type of Package 3 P06
Number of Units in Package 3 192
Package 3 Height 75 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 40 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
