Schneider Electric

ZA2BG6

ZA2BG6 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for ZA2BG6 Schneider Electric

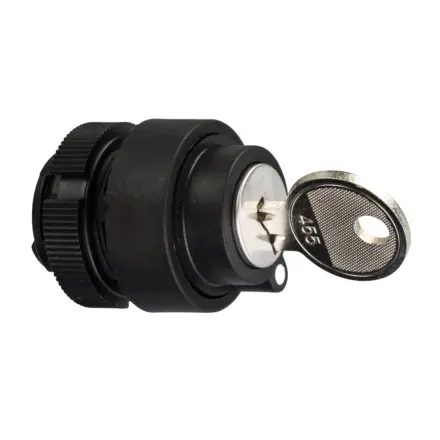

ZA2BG6 Schneider Electric - key selector switch head - 2 pos. - spring return - withdrawal left-hand pos.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£19.34 Exc. VAT
£23.21 Inc. VAT

Main

range of product Harmony XAC
product or component type Selector switch
Component name ZA2
Product compatibility XACA

Complementary

net weight 0.042 kg
cap/operator or lens colour Black
marking Unmarked
Mounting location Front of enclosure
Sale per indivisible quantity 1

Environment

Standards CSA C22.2 No 14,UL 508,EN/IEC 60204-32,EN/IEC 60947-5-1
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…70 °C
Vibration resistance 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
Shock resistance 100 gn conforming to IEC 60068-2-27
Overvoltage category Class II conforming to IEC 61140
IP degree of protection IP65 conforming to IEC 60529
IK degree of protection IK08 conforming to EN 50102

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 3.000 cm
Package 1 Length 6.000 cm
Package 1 Weight 51.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 3.000 cm
Package 2 Width 13.000 cm
Package 2 Length 15.000 cm
Package 2 Weight 516.000 g
Unit Type of Package 3 S02
Number of Units in Package 3 50
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.894 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD

Environmental disclosure
