Schneider Electric

ZA2VA03

ZA2VA03 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for ZA2VA03 Schneider Electric

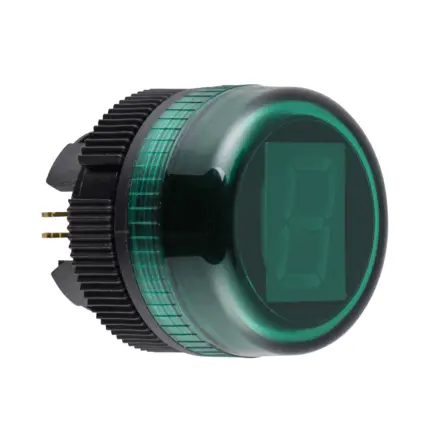

ZA2VA03 Schneider Electric - green digital display head Ã22

Extended Description for ZA2VA03 Schneider Electric

ZA2VA03 Schneider Electric - This Harmony ZA2VA03 is a green digital display head.,It is part of the range Harmony XB5 diameter 22mm modular plastic push buttons, switches, and pilot lights.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£24.33 Exc. VAT
£29.20 Inc. VAT

Main

range of product Harmony
product or component type Digital display head
Mounting diameter 22 mm
cap/operator or lens colour Green
[Us] rated supply voltage 24 V DC

Complementary

Display type 7 segments LED + decimal point
Supply voltage limits 13…30 V
net weight 0.02 kg

Environment

Product certifications UL,CSA
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…85 °C
Vibration resistance 10 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
Shock resistance 180 gn 11 ms conforming to IEC 60068-2-27
Electrical shock protection class Class II conforming to NF C 20-030
IP degree of protection IP65 conforming to IEC 60529,IP65 conforming to NF C 20-010

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 4.2 cm
Package 1 Length 4.2 cm
Package 1 Weight 21.0 g
Unit Type of Package 2 S01
Number of Units in Package 2 30
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 803.0 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
