Schneider Electric

ZB4BS84430

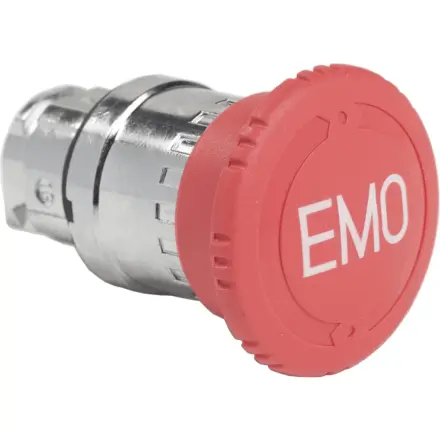

ZB4BS84430 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for ZB4BS84430 Schneider Electric

ZB4BS84430 Schneider Electric - Head for emergency switching off push button, Harmony XB4, red à 40 stop,switching Ã22 mm trigger and latching turn release

Extended Description for ZB4BS84430 Schneider Electric

ZB4BS84430 Schneider Electric - This head for emergency stop push button is a separate component of the range of control and signaling units, Harmony XB4, metal, diameter 22mm.,It has a chromium-plated metal bezel.,It is supplied with a red mushroom diameter 40 mm, marked EMO (white).,It is easily combined with Harmony range of contact blocks to perform a large variety of control functions.,It operates with with trigger action and mechanical latching.,It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66.,It weighs 73g.,Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£7.76 Exc. VAT
£9.32 Inc. VAT

Main

range of product Harmony XB4
product or component type Head for emergency switching off push-button
Device short name ZB4
Bezel material Chromium plated metal
Mounting diameter 22.5 mm
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator trigger action and mechanical latching
Reset Turn to release
Operator profile Red mushroom Ø 40 mm, EMO
Head type Standard

Complementary

CAD overall width 40 mm
CAD overall height 40 mm
CAD overall depth 57 mm
net weight 0.073 kg
Mechanical durability 300000 cycles
Electrical composition code C7 for <4 contacts using single blocks in front mounting,C8 for <4 contacts using single and double blocks in front mounting,C11 for <3 contacts using single blocks in front mounting,C15 for <1 contacts using single blocks in front mounting,C10 for <4 contacts using single and double blocks in front mounting

Environment

Protective treatment TH
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -40…70 °C
Electrical shock protection class Class I conforming to IEC 61140
IP degree of protection IP66 conforming to IEC 60529,IP69,IP69K
NEMA degree of protection NEMA 13,NEMA 4X,NEMA 4,NEMA 12
IK degree of protection IK06 conforming to IEC 50102
Standards JIS C8201-5-1,CSA C22.2 No 14,IEC 60947-5-1,GB 14048.5,UL 508,IEC 60947-1,IEC 60364-5-53,IEC 60947-5-4,IEC 60204-1,IEC 60947-5-5,ISO 13850,JIS C8201-1
Product certifications DNV,UL listed,LROS (Lloyds register of shipping),BV,CSA
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27,50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.400 cm
Package 1 Width 5.200 cm
Package 1 Length 8.600 cm
Package 1 Weight 75.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 42
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.475 kg
Unit Type of Package 3 P06
Number of Units in Package 3 672
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 68.196 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

CAD

Environmental disclosure
